UCC2809P-1

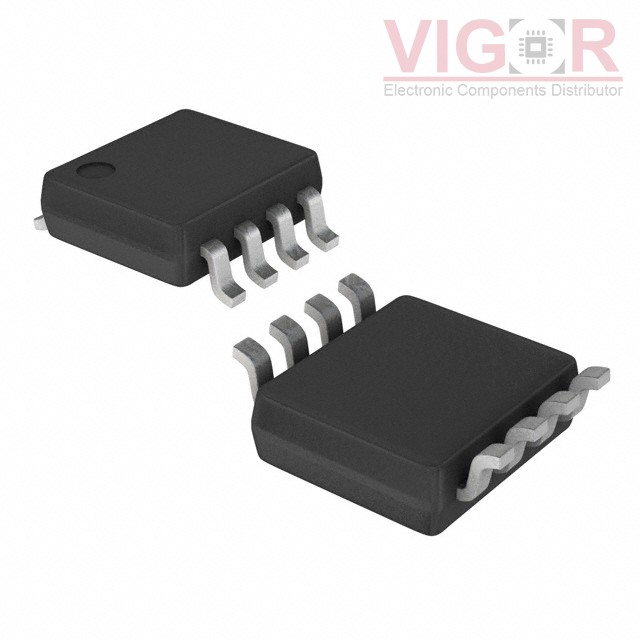

Image is for reference,
please contact us to get the real picture

Part No :: UCC2809P-1

Manufacturer: VIGOR

Description: UCC2809-1 ECONOMY PRIMARY SIDE C

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: UCC2809P-1 PDF

Availability: 40060 pieces

Unit Price: ~~$1.88000~~

Current price of UCC2809P-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UCC2809P-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Boost, Flyback, Forward
Voltage - Start Up:	10 V
Voltage - Supply (Vcc/Vdd):	8V ~ 19V
Duty Cycle:	70%
Frequency - Switching:	1MHz
Power (Watts):	-
Fault Protection:	-
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-55°C ~ 150°C (TJ)
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-VSSOP
Mounting Type:	Surface Mount
