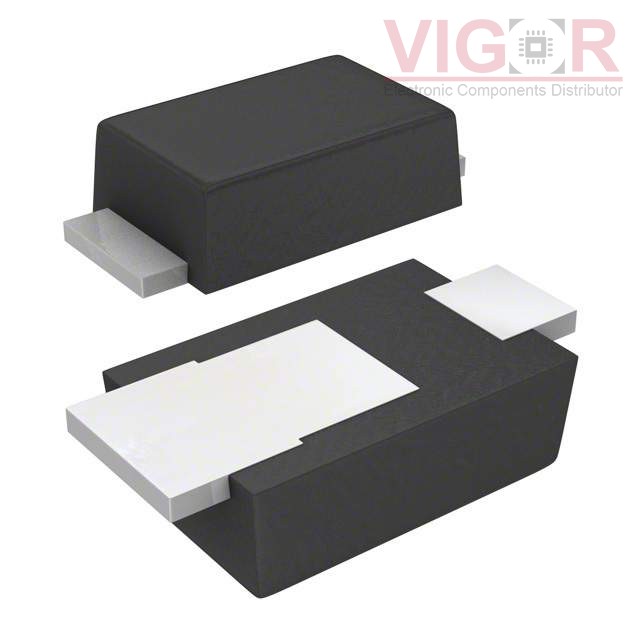

AL5809-20P1-7

Part No :: AL5809-20P1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3920636

Description: IC LED DRVR LIN PWM 20MA PDI12

Catalog: PMIC - LED Drivers

DataSheet: AL5809-20P1-7 PDF

Country of origin: -

Date code: -

AL5809-20P1-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	20mA
Frequency:	-
Dimming:	PWM
Applications:	Signage
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	POWERDI®123
Supplier Device Package:	PowerDI™ 123

Alternative Products

Part Number	Manufacturer & Description	Compare
MIC2846A-MFYMT-TR Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR 20MA 14TMLF	AL5809-20P1-7 vs MIC2846A-MFYMT-TR
MIC2846A-SCYMT-TR Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR 20MA 14TMLF	AL5809-20P1-7 vs MIC2846A-SCYMT-TR
MIC2844AYMT-TR Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR DIM 10TMLF	AL5809-20P1-7 vs MIC2844AYMT-TR
AL5809-20S1-7 Match 100%	Zetex Semiconductors (Diodes Inc.) IC LED DRVR LIN PWM 20MA SOD123	AL5809-20P1-7 vs AL5809-20S1-7
MIC2842AYMT-TR Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR DIM 10TMLF	AL5809-20P1-7 vs MIC2842AYMT-TR
MAX6947ATE+T Match 100%	Maxim Integrated IC LED DRIVER LINEAR 20MA 16TQFN	AL5809-20P1-7 vs MAX6947ATE+T
