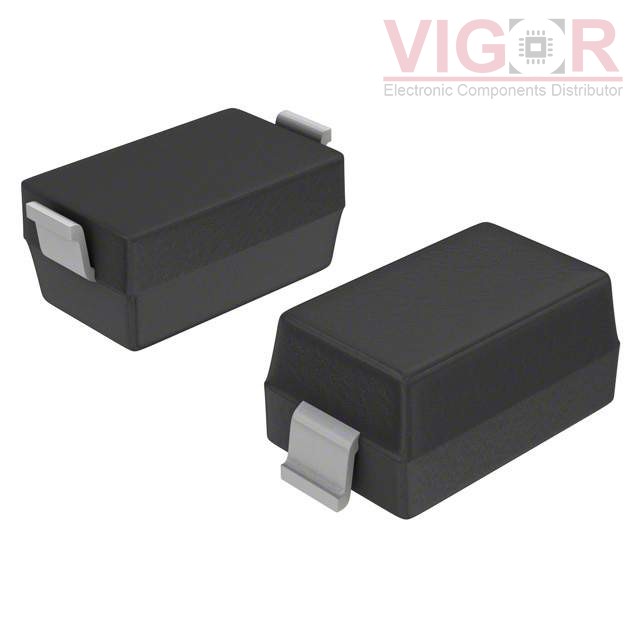

AL5809-20S1-7

Part No :: AL5809-20S1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3920999

Description: IC LED DRVR LIN PWM 20MA SOD123

Catalog: PMIC - LED Drivers

DataSheet: AL5809-20S1-7 PDF

Country of origin: -

Date code: -

AL5809-20S1-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	20mA
Frequency:	-
Dimming:	PWM
Applications:	Signage
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SOD-123
Supplier Device Package:	SOD-123
