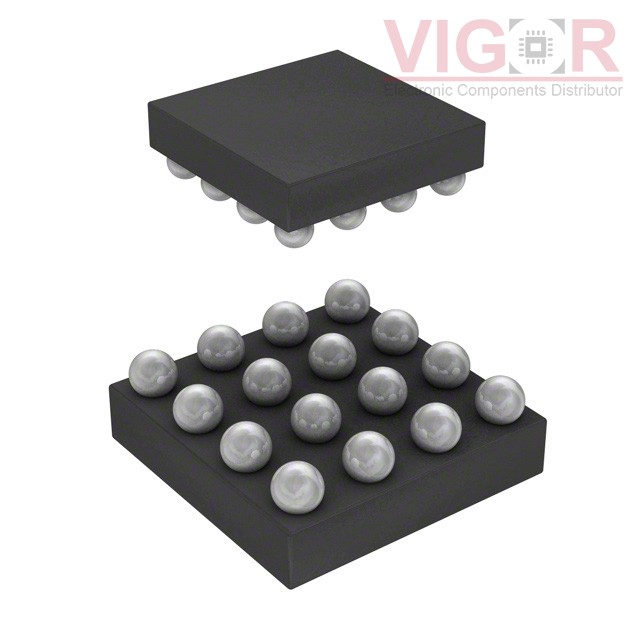

FAN5701UC20X

Part No :: FAN5701UC20X

Manufacturer: VIGOR

VIGOR # :: 3920945

Description: LED DRIVER, 6-SEGMENT, PBGA16

Catalog: PMIC - LED Drivers

DataSheet: FAN5701UC20X PDF

Country of origin: -

Date code: -

FAN5701UC20X Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	DC DC Regulator
Topology:	Switched Capacitor (Charge Pump)
Internal Switch(s):	Yes
Number of Outputs:	6
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	5.5V
Voltage - Output:	-
Current - Output / Channel:	20mA
Frequency:	1.2MHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-UFBGA, WLCSP
Supplier Device Package:	16-WLCSP (1.71x1.71)

Alternative Products

Part Number	Manufacturer & Description	Compare
CL320SG-G Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LIN DIM 20MA 8SOIC	FAN5701UC20X vs CL320SG-G
LM3528TMX/NOPB Match 97%	VIGOR LM3528 HIGH EFFICIENCY, MULTI DI	FAN5701UC20X vs LM3528TMX/NOPB
MP3388SGR-P Match 97%	MPS (Monolithic Power Systems) IC LED DRIVER	FAN5701UC20X vs MP3388SGR-P
AP3156FVG-7 Match 100%	Zetex Semiconductors (Diodes Inc.) IC LED DRIVER RGLTR 20MA 16QFN	FAN5701UC20X vs AP3156FVG-7
LM3528TME/NOPB Match 97%	VIGOR LM3528 HIGH EFFICIENCY, MULTI DI	FAN5701UC20X vs LM3528TME/NOPB
LV52207XA-VH Match 100%	VIGOR LED DRIVER, BICMOS, PBGA9	FAN5701UC20X vs LV52207XA-VH
