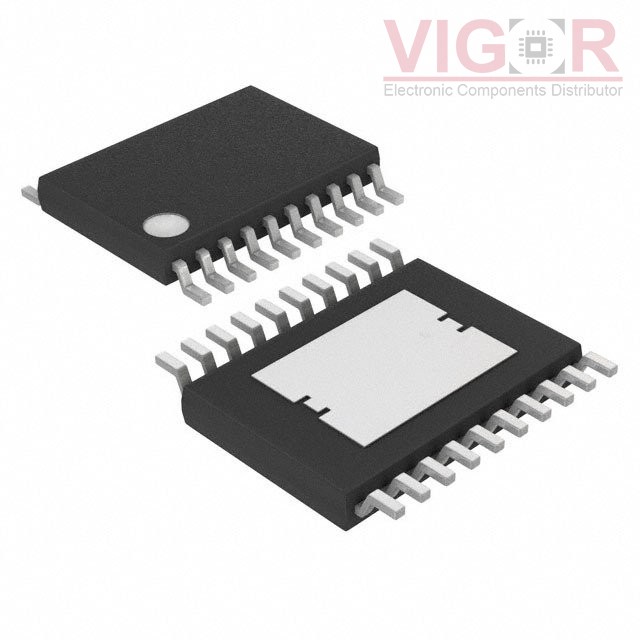

MAX16814CAUP+

Part No :: MAX16814CAUP+

Manufacturer: Maxim Integrated

VIGOR # :: 3921113

Description: IC LED DVR 4CH DC-DC 20TSSOP

Catalog: PMIC - LED Drivers

DataSheet: MAX16814CAUP+ PDF

Country of origin: -

Date code: -

MAX16814CAUP+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	DC DC Controller
Topology:	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):	No
Number of Outputs:	4
Voltage - Supply (Min):	4.75V
Voltage - Supply (Max):	40V
Voltage - Output:	-
Current - Output / Channel:	150mA
Frequency:	200kHz ~ 2MHz
Dimming:	PWM
Applications:	Backlight, Lighting
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-TSSOP-EP
