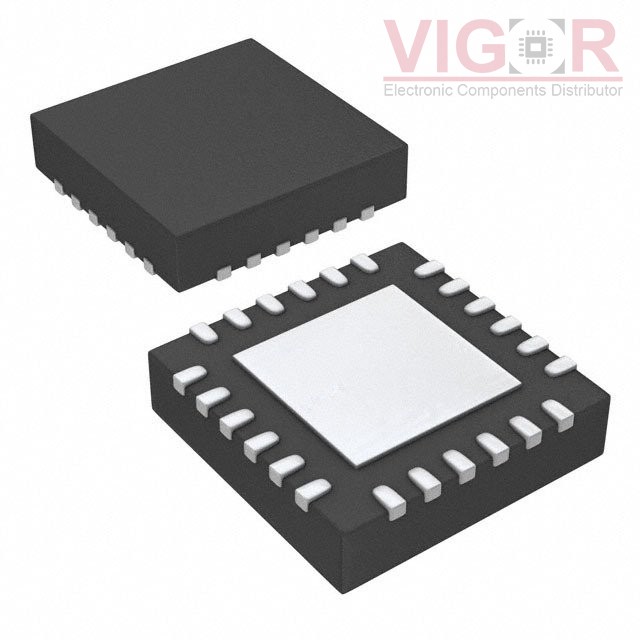

LP8556SQE-E09/NOPB

Part No :: LP8556SQE-E09/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 3921477

Description: IC LED DRIVER RGLTR DIM 24WQFN

Catalog: PMIC - LED Drivers

DataSheet: LP8556SQE-E09/NOPB PDF

Country of origin: -

Date code: -

LP8556SQE-E09/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	6
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	20V
Voltage - Output:	16V ~ 34.5V
Current - Output / Channel:	25mA
Frequency:	312kHz, 625kHz, 1250kHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-WFQFN Exposed Pad
Supplier Device Package:	24-WQFN (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
LP8556TME-E05/NOPB Match 100%	VIGOR LP8556 6 CHANNEL HIGH-EFFICIENCY	LP8556SQE-E09/NOPB vs LP8556TME-E05/NOPB
LP8556TMX-E11/NOPB Match 100%	Texas Instruments IC LED BACKLIGHT DVR 6CH 20DSBGA	LP8556SQE-E09/NOPB vs LP8556TMX-E11/NOPB
LP8556TMX-E05/NOPB Match 100%	VIGOR LP8556 6 CHANNEL HIGH-EFFICIENCY	LP8556SQE-E09/NOPB vs LP8556TMX-E05/NOPB
LP8556SQE-E08/NOPB Match 100%	Texas Instruments IC LED DRIVER RGLTR DIM 24WQFN	LP8556SQE-E09/NOPB vs LP8556SQE-E08/NOPB
LP8556TME-E02/NOPB Match 100%	Texas Instruments IC LED DRIVER RGLTR DIM 20DSBGA	LP8556SQE-E09/NOPB vs LP8556TME-E02/NOPB
LP8556TME-E06/NOPB Match 100%	Texas Instruments IC LED DRIVER RGLTR DIM 20DSBGA	LP8556SQE-E09/NOPB vs LP8556TME-E06/NOPB
