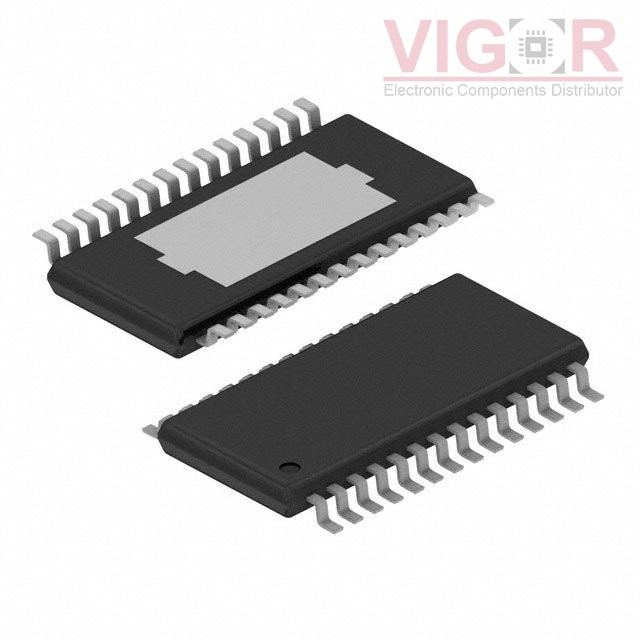

TLC5946PWP

Part No :: TLC5946PWP

Manufacturer: VIGOR

VIGOR # :: 3922239

Description: TLC5946 16-CHANNEL, 12-BIT PWM L

Catalog: PMIC - LED Drivers

DataSheet: TLC5946PWP PDF

Country of origin: -

Date code: -

TLC5946PWP Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Linear
Topology:	Shift Register
Internal Switch(s):	Yes
Number of Outputs:	16
Voltage - Supply (Min):	3V
Voltage - Supply (Max):	5.5V
Voltage - Output:	17V
Current - Output / Channel:	40mA
Frequency:	30MHz
Dimming:	-
Applications:	Backlight, Signage
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-HTSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
TLC5946PW Match 100%	VIGOR TLC5946 16-CHANNEL, 12-BIT PWM L	TLC5946PWP vs TLC5946PW
STP16CPP05XTTR Match 100%	STMicroelectronics IC LED DRIVER LIN 40MA 24TSSOP	TLC5946PWP vs STP16CPP05XTTR
STP16CPPS05XTTR Match 100%	STMicroelectronics IC LED DRIVER LIN 40MA 24TSSOP	TLC5946PWP vs STP16CPPS05XTTR
TLC5946RHBR Match 100%	Texas Instruments IC LED DRIVER LINEAR 40MA 32VQFN	TLC5946PWP vs TLC5946RHBR
STP16CPP05MTR Match 100%	STMicroelectronics IC LED DRIVER LINEAR 40MA 24SOP	TLC5946PWP vs STP16CPP05MTR
TLC59461PWPR Match 100%	VIGOR TLC59461 16-CHANNEL, 12-BIT PWM	TLC5946PWP vs TLC59461PWPR
