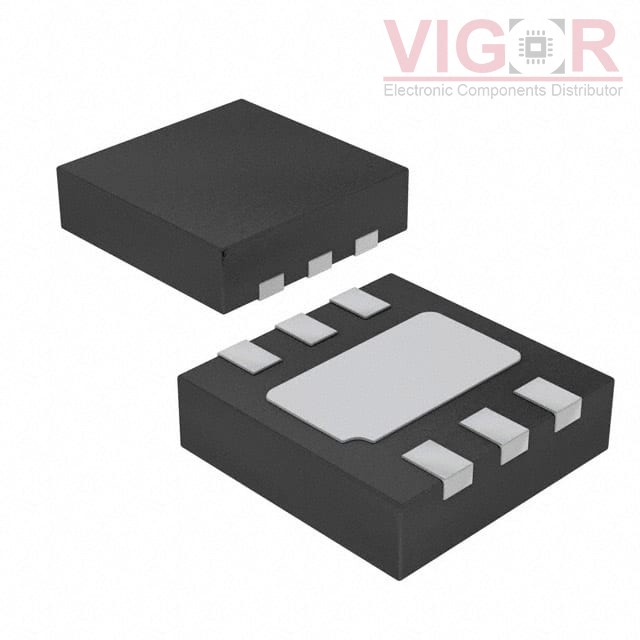

AL5802LPL-7

Part No :: AL5802LPL-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4920680

Description: IC LED DRVR LIN PWM U-DFN3030-6

Catalog: PMIC - LED Drivers

DataSheet: AL5802LPL-7 PDF

Country of origin: -

Date code: -

AL5802LPL-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	4.5V
Voltage - Supply (Max):	30V
Voltage - Output:	30V
Current - Output / Channel:	120mA
Frequency:	-
Dimming:	PWM
Applications:	-
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-UDFN Exposed Pad
Supplier Device Package:	U-DFN3030-6

Alternative Products

Part Number	Manufacturer & Description	Compare
NCR421ZX Match 68%	Nexperia 150 MA LED DRIVER IN SOT223	AL5802LPL-7 vs NCR421ZX
TLD1314ELXUMA1 Match 100%	IR (Infineon Technologies) IC LED DRIVER LIN 120MA 14SSOP	AL5802LPL-7 vs TLD1314ELXUMA1
TLD1326ELXUMA1 Match 100%	VIGOR TLD1326 - 3 CHANNEL HIGH SIDE CU	AL5802LPL-7 vs TLD1326ELXUMA1
AL5802-7 Match 100%	Zetex Semiconductors (Diodes Inc.) IC LED DRVR LIN DIM 120MA SOT26	AL5802LPL-7 vs AL5802-7
TLD22522EPXUMA1 Match 100%	IR (Infineon Technologies) IC GATE DRIVER HIS SIDE	AL5802LPL-7 vs TLD22522EPXUMA1
AL1783T16E-13 Match 94%	Zetex Semiconductors (Diodes Inc.) LED LINEAR DRIVER,TSSOP-16EP,T&R	AL5802LPL-7 vs AL1783T16E-13
