LV8402GP-TE-L-H

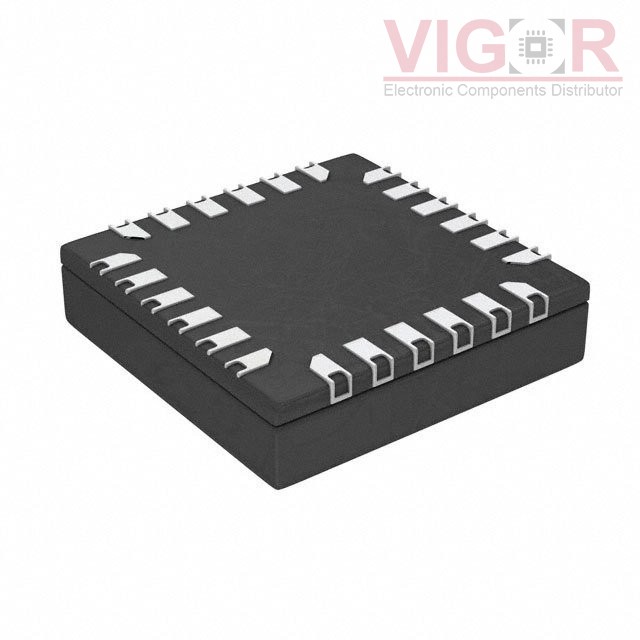

Image is for reference,
please contact us to get the real picture

Part No :: LV8402GP-TE-L-H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MOTOR DRIVER 2.8V-5.5V 24VCT

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LV8402GP-TE-L-H PDF

Availability: 32500 pieces

Unit Price: ~~$2.56000~~

Current price of LV8402GP-TE-L-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LV8402GP-TE-L-H Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	-
Motor Type - AC, DC:	Brushed DC
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	Bi-CMOS
Step Resolution:	-
Applications:	General Purpose
Current - Output:	1.4A
Voltage - Supply:	2.8V ~ 5.5V
Voltage - Load:	1.5V ~ 15V
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-WFQFN
Supplier Device Package:	24-VCT (3.5x3.5)
