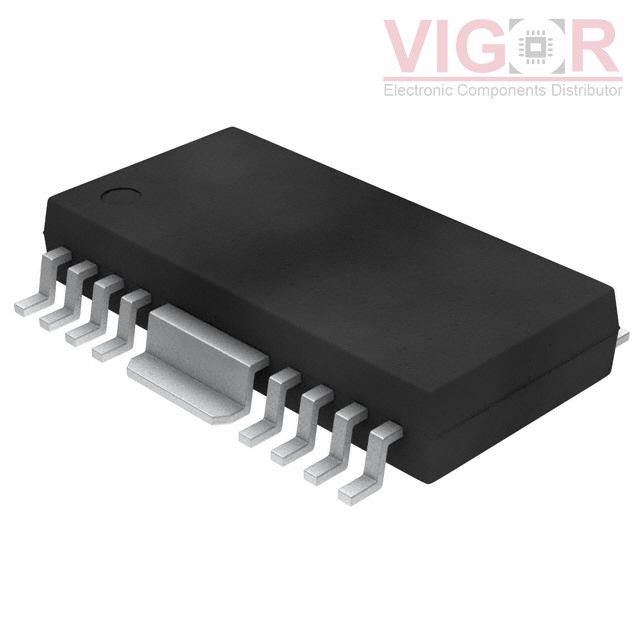

TB6569FG,8,EL

Part No :: TB6569FG,8,EL

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 3918728

Description: IC MOTOR DRIVER 10V-45V 16HSOP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB6569FG,8,EL PDF

Country of origin: -

Date code: -

TB6569FG,8,EL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	-
Motor Type - AC, DC:	Brushed DC
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	Parallel, PWM
Technology:	Bi-CMOS
Step Resolution:	-
Applications:	General Purpose
Current - Output:	1.5A
Voltage - Supply:	10V ~ 45V
Voltage - Load:	10V ~ 45V
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs
Supplier Device Package:	16-HSOP
