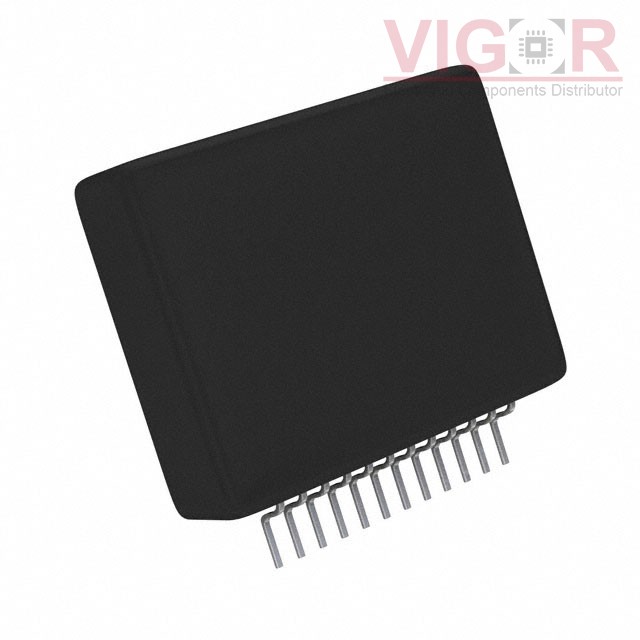

STK672-120-SL-E

Part No :: STK672-120-SL-E

Manufacturer: VIGOR

VIGOR # :: 3918924

Description: STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: STK672-120-SL-E PDF

Country of origin: -

Date code: -

STK672-120-SL-E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Motor Type - Stepper:	Unipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	3A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	10V ~ 42V
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	12-SIP Formed Leads
Supplier Device Package:	12-SIP

Alternative Products

Part Number	Manufacturer & Description	Compare
STK672-340-E Match 85%	VIGOR STEPPER MOTOR CONTROLLER	STK672-120-SL-E vs STK672-340-E
STK672-220-E Match 100%	VIGOR STEPPER MOTOR CONTROLLER	STK672-120-SL-E vs STK672-220-E
STK672-533-E Match 55%	VIGOR STEPPER MOTOR CONTROLLER	STK672-120-SL-E vs STK672-533-E
STK672-532 Match 55%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 12SIP	STK672-120-SL-E vs STK672-532
STK672-543-E Match 86%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 12SIP	STK672-120-SL-E vs STK672-543-E
STK672-540 Match 86%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 12SIP	STK672-120-SL-E vs STK672-540
