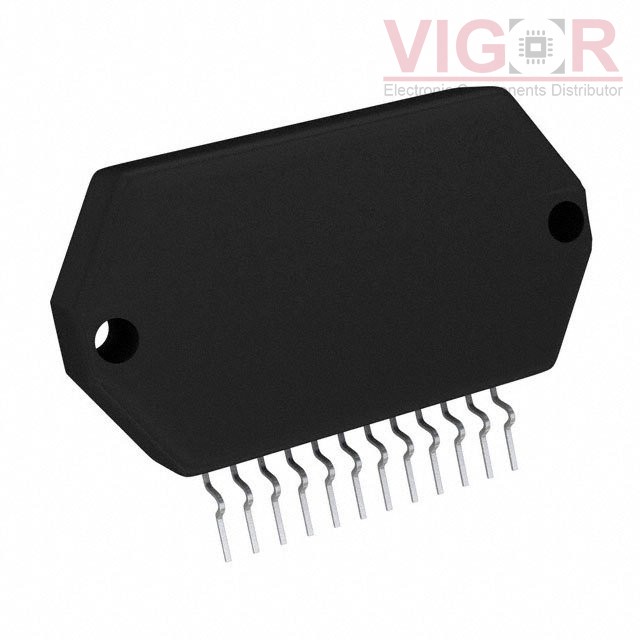

STK672-540

Part No :: STK672-540

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4919470

Description: IC MOTOR DRIVER UNIPOLAR 12SIP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: STK672-540 PDF

Country of origin: -

Date code: -

STK672-540 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Motor Type - Stepper:	Unipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	3.3A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	10V ~ 42V
Operating Temperature:	0°C ~ 105°C (TC)
Mounting Type:	Surface Mount
Package / Case:	12-SIP Formed Leads
Supplier Device Package:	12-SIP

Alternative Products

Part Number	Manufacturer & Description	Compare
STK672-340-E Match 71%	VIGOR STEPPER MOTOR CONTROLLER	STK672-540 vs STK672-340-E
STK672-220-E Match 86%	VIGOR STEPPER MOTOR CONTROLLER	STK672-540 vs STK672-220-E
STK672-120-SL-E Match 86%	VIGOR STEPPER MOTOR CONTROLLER	STK672-540 vs STK672-120-SL-E
STK672-543-E Match 100%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 12SIP	STK672-540 vs STK672-543-E
