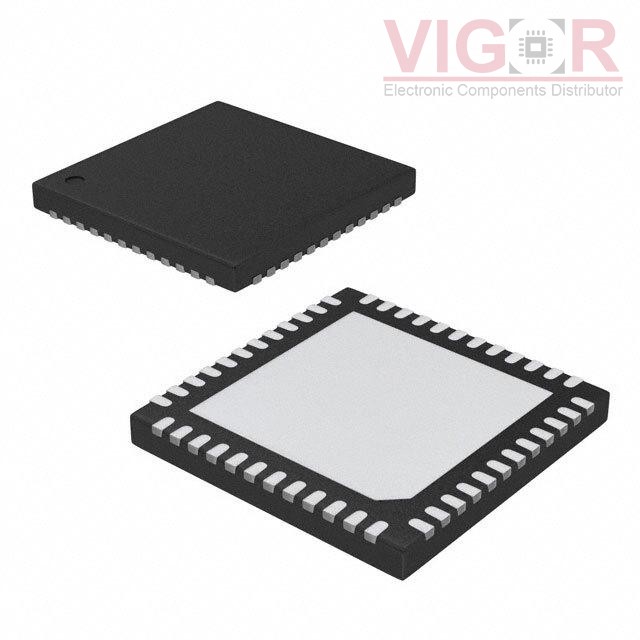

TB67S109AFTG,EL

Part No :: TB67S109AFTG,EL

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 3919336

Description: IC MOTOR DRIVER BIPOLAR 48WQFN

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB67S109AFTG,EL PDF

Country of origin: -

Date code: -

TB67S109AFTG,EL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1 ~ 1/32
Applications:	General Purpose
Current - Output:	3A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	10V ~ 47V
Operating Temperature:	-20°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	48-WFQFN Exposed Pad
Supplier Device Package:	48-WQFN (7x7)
