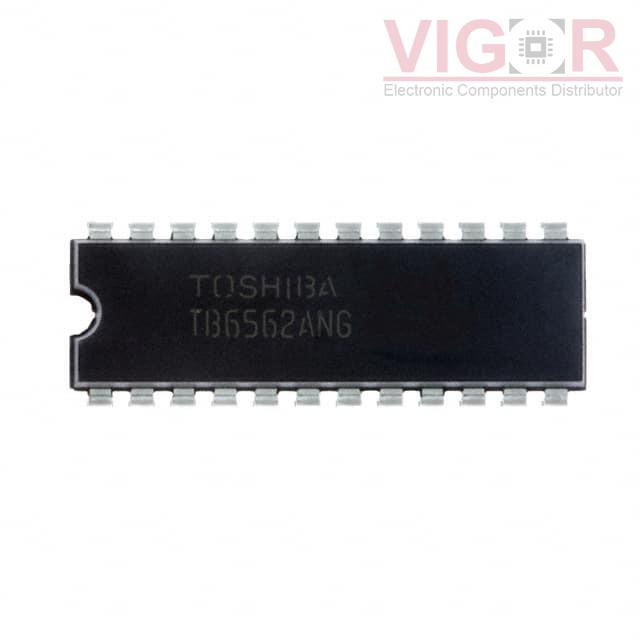

TB6562ANG

Part No :: TB6562ANG

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4919064

Description: IC MTR DRV BIPOLAR 10-34V 24SDIP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB6562ANG PDF

Country of origin: -

Date code: -

TB6562ANG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	DMOS
Step Resolution:	1, 1/2, 1/4
Applications:	General Purpose
Current - Output:	1.5A
Voltage - Supply:	10V ~ 34V
Voltage - Load:	10V ~ 34V
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	24-SDIP (0.300", 7.62mm)
Supplier Device Package:	24-SDIP
