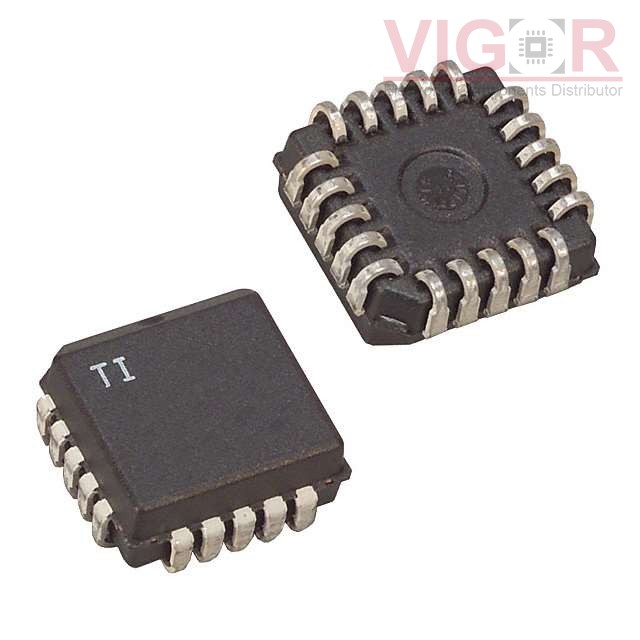

UCC3806Q

Part No :: UCC3806Q

Manufacturer: VIGOR

VIGOR # :: 3854724

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC3806Q PDF

Country of origin: -

Date code: -

UCC3806Q Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Buck, Boost, Flyback, Forward Converter
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 14.5V
Frequency - Switching:	47kHz
Duty Cycle (Max):	50%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
