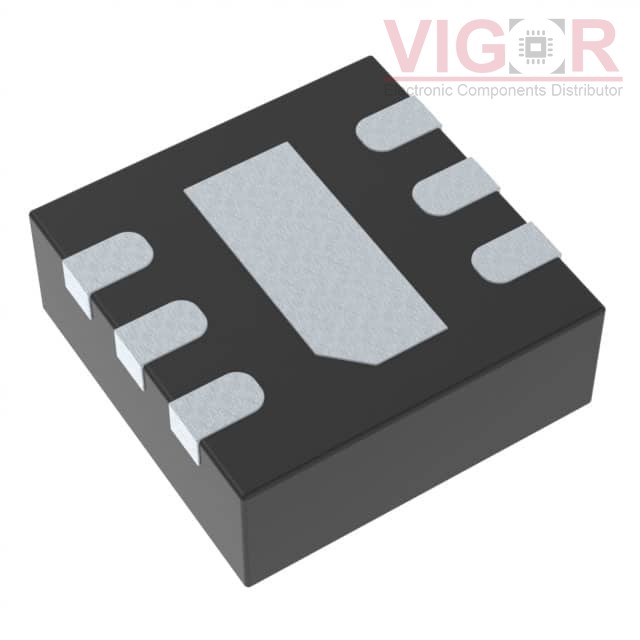

LT3009IDC-2.5#TRMPBF

Part No :: LT3009IDC-2.5#TRMPBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3742696

Description: IC REG LINEAR 2.5V 20MA 6DFN

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LT3009IDC-2.5#TRMPBF PDF

Country of origin: -

Date code: -

LT3009IDC-2.5#TRMPBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	20V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.45V @ 20mA
Current - Output:	20mA
Current - Quiescent (Iq):	6 µA
Current - Supply (Max):	1 mA
PSRR:	63dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Reverse Polarity
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-WFDFN Exposed Pad
Supplier Device Package:	6-DFN (2x2)

Alternative Products

Part Number	Manufacturer & Description	Compare
LT3009EDC-3.3#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 3.3V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009EDC-3.3#TRPBF
LT3009EDC-1.8#TRMPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.8V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009EDC-1.8#TRMPBF
LT3009IDC-1.8#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.8V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009IDC-1.8#TRPBF
LT3009IDC-5#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 5V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009IDC-5#TRPBF
LT3009IDC-1.8#TRMPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.8V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009IDC-1.8#TRMPBF
LT3009EDC-2.5#TRPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 2.5V 20MA 6DFN	LT3009IDC-2.5#TRMPBF vs LT3009EDC-2.5#TRPBF

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 112

Shipped from

HK warehouse

Expected Shipping Date

Aug 31 - Sep 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.0300~~	~~$3.03~~
500	~~$1.4874~~	~~$743.72~~

Current price of LT3009IDC-2.5#TRMPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
