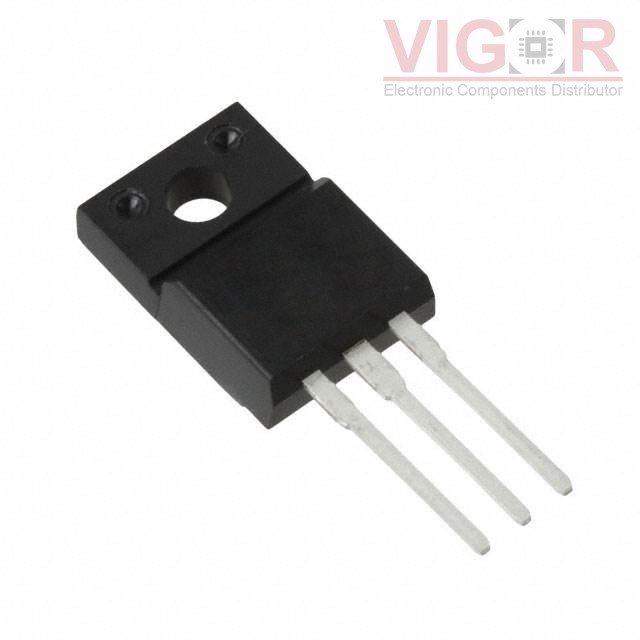

NJM7909FA

Part No :: NJM7909FA

Manufacturer: New Japan Radio (NJR)

VIGOR # :: 3756878

Description: IC REG LINEAR -9V 1.5A TO220F

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NJM7909FA PDF

Country of origin: -

Date code: -

NJM7909FA Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Negative
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	-35V
Voltage - Output (Min/Fixed):	-9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1.5A
Current - Quiescent (Iq):	5 mA
Current - Supply (Max):	-
PSRR:	59dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220F
