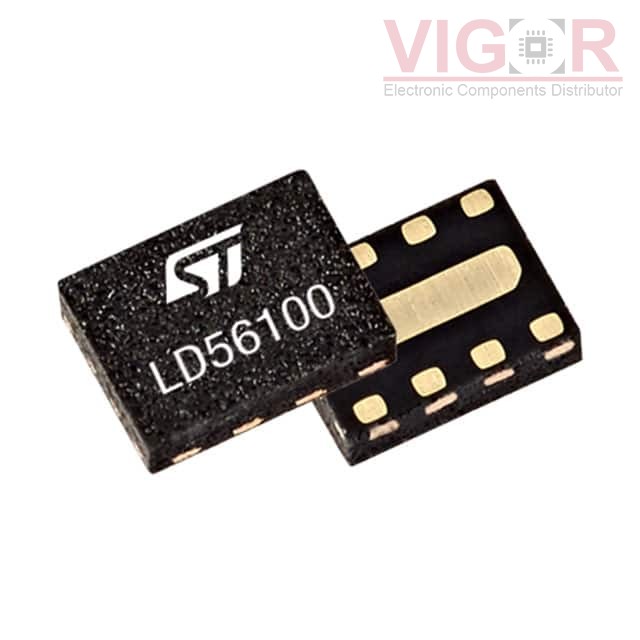

LD56100DPU33R

Part No :: LD56100DPU33R

Manufacturer: STMicroelectronics

Description: IC REG LINEAR 3.3V 1A 8DFN

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LD56100DPU33R PDF

Availability: 1090 pieces

Current price of LD56100DPU33R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LD56100DPU33R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.16V @ 1A
Current - Output:	1A
Current - Quiescent (Iq):	155 µA
Current - Supply (Max):	-
PSRR:	70dB ~ 55dB (1kHz ~ 100kHz)
Control Features:	Enable, Soft Start
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-XFDFN Exposed Pad
Supplier Device Package:	8-DFN (1.6x1.2)

Please confirm the specifications of the products when ordering.
