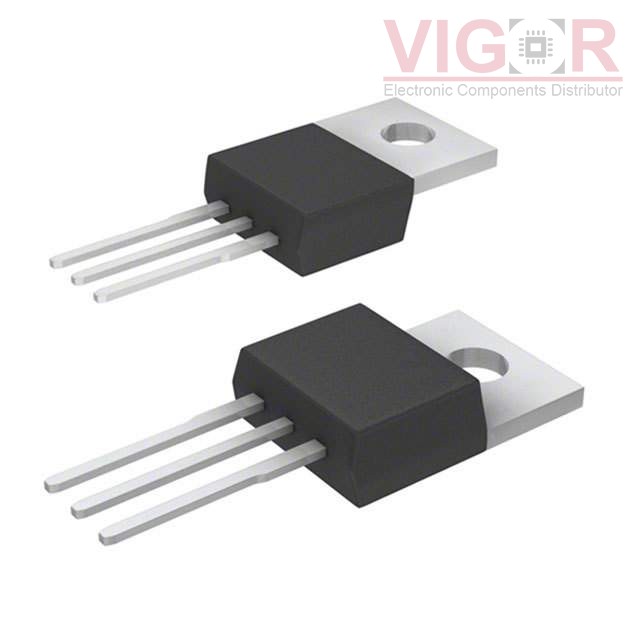

MC7809CT-BP

Part No :: MC7809CT-BP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 4870918

Description: IC REG LINEAR 9V 1A TO220

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: MC7809CT-BP PDF

Country of origin: -

Date code: -

MC7809CT-BP Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	30V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2V @ 1A (Typ)
Current - Output:	1A
Current - Quiescent (Iq):	8 mA
Current - Supply (Max):	-
PSRR:	72dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	0°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220

Alternative Products

Part Number	Manufacturer & Description	Compare
L7824ABV-DG Match 71%	STMicroelectronics IC REG LINEAR 24V 1.5A TO220	MC7809CT-BP vs L7824ABV-DG
TS7809CZ C0G Match 100%	TSC (Taiwan Semiconductor) IC REG LINEAR 9V 1A TO220	MC7809CT-BP vs TS7809CZ C0G
TS7808CZ C0G Match 100%	TSC (Taiwan Semiconductor) IC REG LINEAR 8V 1A TO220	MC7809CT-BP vs TS7808CZ C0G
TS7824CZ C0G Match 100%	TSC (Taiwan Semiconductor) IC REG LINEAR 24V 1A TO220	MC7809CT-BP vs TS7824CZ C0G
MC7806CT-BP Match 100%	Micro Commercial Components (MCC) IC REG LINEAR 6V 1A TO220	MC7809CT-BP vs MC7806CT-BP
MC7808CT-BP Match 100%	Micro Commercial Components (MCC) IC REG LINEAR 8V 1A TO220	MC7809CT-BP vs MC7808CT-BP
