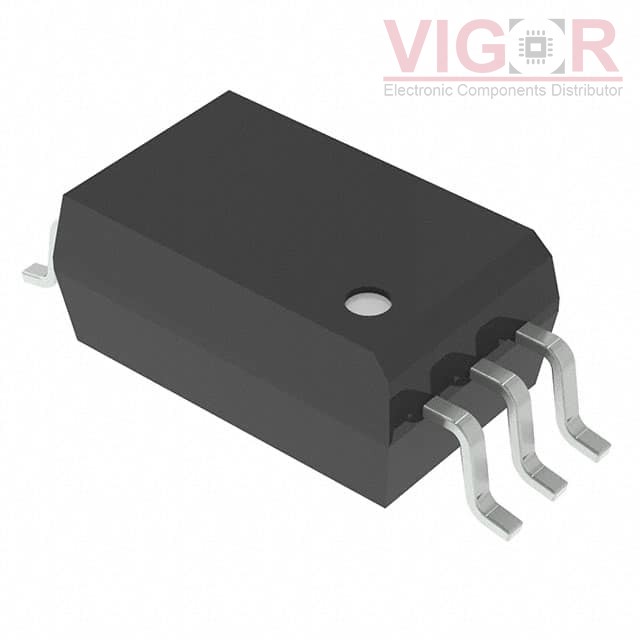

UCC23511DWY

Part No :: UCC23511DWY

Manufacturer: Texas Instruments

VIGOR # :: 4087755

Description: 1A- SGNL CHAN ISO GD WITH OPTO 5

Catalog: Isolators - Gate Drivers

DataSheet: UCC23511DWY PDF

Country of origin: -

Date code: -

UCC23511DWY Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5700Vrms
Common Mode Transient Immunity (Min):	150kV/µs
Propagation Delay tpLH / tpHL (Max):	105ns, 105ns
Pulse Width Distortion (Max):	35ns
Rise / Fall Time (Typ):	28ns, 25ns
Current - Output High, Low:	1.5A, 2A
Current - Peak Output:	2A, 1.5A
Voltage - Forward (Vf) (Typ):	2.1V
Current - DC Forward (If) (Max):	16 mA
Voltage - Output Supply:	14V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SOIC
Approval Agency:	CQC, UL, VDE
