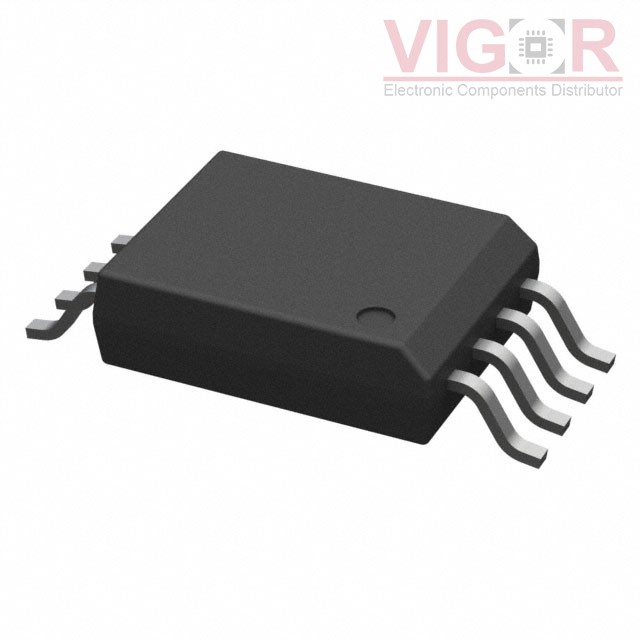

UCC5304DWVR

Part No :: UCC5304DWVR

Manufacturer: Texas Instruments

VIGOR # :: 4088748

Description: 4A/6A 5.7KVRMS SING CH ISODR 5V

Catalog: Isolators - Gate Drivers

DataSheet: UCC5304DWVR PDF

Country of origin: -

Date code: -

UCC5304DWVR Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	100V/ns
Propagation Delay tpLH / tpHL (Max):	40ns, 40ns
Pulse Width Distortion (Max):	5.5ns
Rise / Fall Time (Typ):	5ns, 6ns
Current - Output High, Low:	4A, 6A
Current - Peak Output:	4A, 6A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	6V ~ 18V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SOIC
Approval Agency:	CQC, UL, VDE
