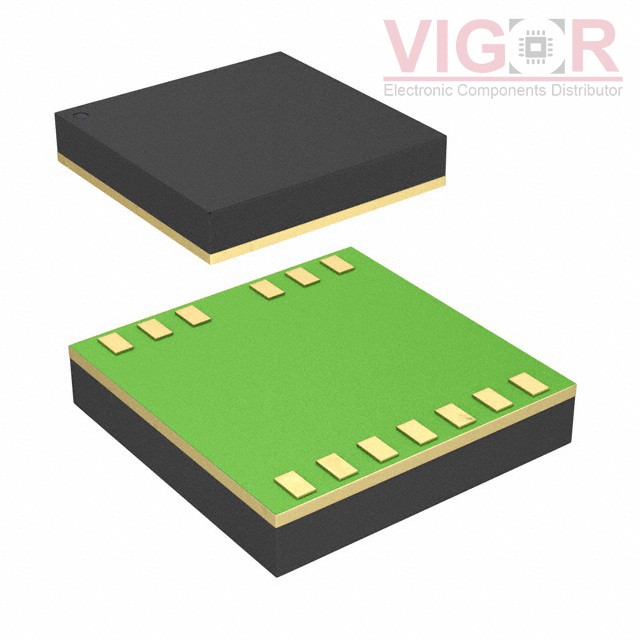

UCC20225QNPLRQ1

Part No :: UCC20225QNPLRQ1

Manufacturer: Texas Instruments

Description: PWR MGMT MOSFET/PWR DRIVER

Catalog: Isolators - Gate Drivers

DataSheet: UCC20225QNPLRQ1 PDF

Availability: 1675 pieces

Current price of UCC20225QNPLRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UCC20225QNPLRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	100V/ns
Propagation Delay tpLH / tpHL (Max):	30ns, 30ns
Pulse Width Distortion (Max):	6ns
Rise / Fall Time (Typ):	6ns, 7ns
Current - Output High, Low:	4A, 6A
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	9.2V ~ 25V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	13-VFLGA
Supplier Device Package:	13-VLGA (5x5)
Approval Agency:	CQC, UL, VDE
