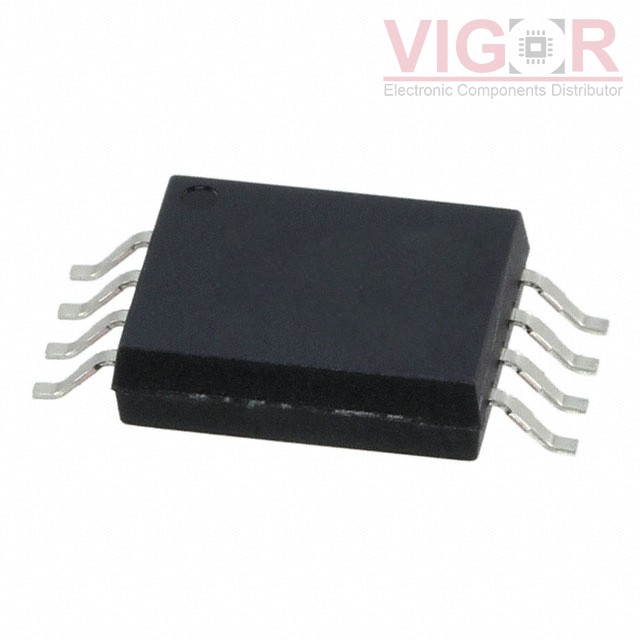

TLP2261(LF4,E

Part No :: TLP2261(LF4,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4081964

Description: HIGH SPEED LOGIC OUTPUT OPTOCOUP

Catalog: Optoisolators - Logic Output

DataSheet: TLP2261(LF4,E PDF

Country of origin: -

Date code: -

TLP2261(LF4,E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	80ns, 80ns
Rise / Fall Time (Typ):	3ns, 3ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	10mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SOIC
