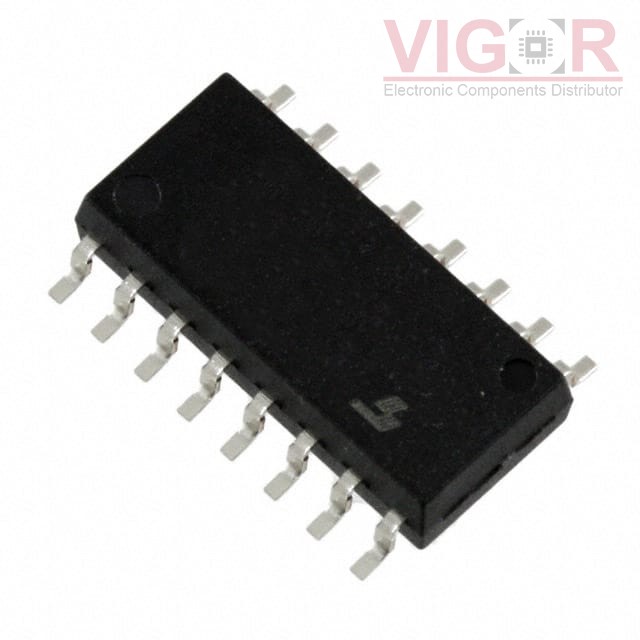

TLP292-4(V4-TR,E

Part No :: TLP292-4(V4-TR,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4085503

Description: OPTOISOLATOR 3.75KV TRANS SO16

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP292-4(V4-TR,E PDF

Country of origin: Confirming

Date code: TBC

TLP292-4(V4-TR,E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	4
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	3µs, 3µs
Rise / Fall Time (Typ):	2µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.179", 4.55mm Width)
Supplier Device Package:	16-SO
