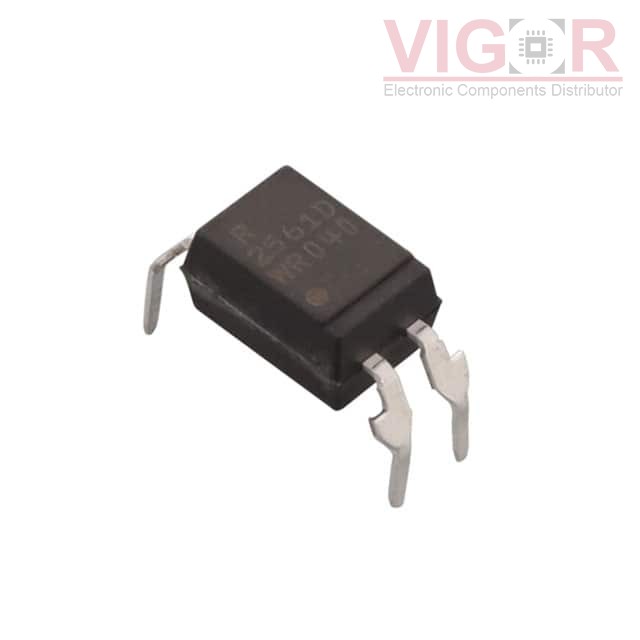

PS2561DL1-1Y-W-A

Part No :: PS2561DL1-1Y-W-A

Manufacturer: Renesas Electronics America

Description: OPTOISOLATOR 5KV TRANS 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2561DL1-1Y-W-A PDF

Availability: 100 pieces

Unit Price: ~~$0.85000~~

Current price of PS2561DL1-1Y-W-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PS2561DL1-1Y-W-A Specifications

Type	Description
Series:	NEPOC
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	130% @ 5mA
Current Transfer Ratio (Max):	260% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 5µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	40 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.400", 10.16mm)
Supplier Device Package:	4-DIP

Please confirm the specifications of the products when ordering.
