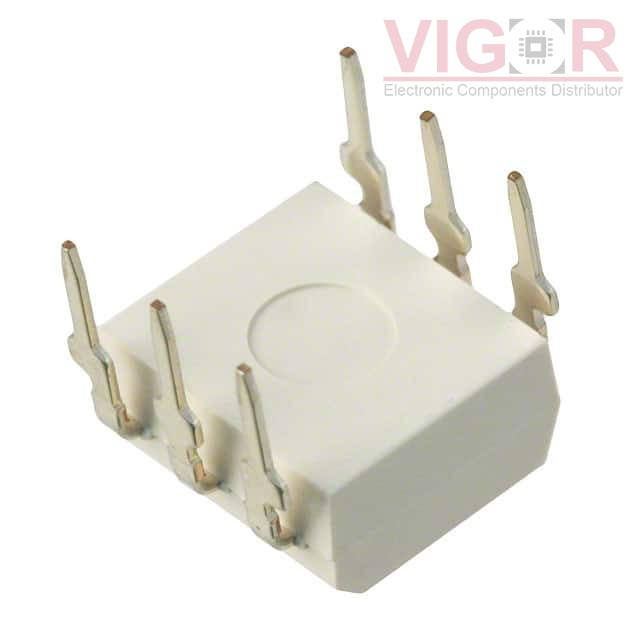

TLP512(F)

Part No :: TLP512(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISOLATOR 2.5KV TRANS 6-DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP512(F) PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TLP512(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLP512(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	15% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	800ns, 800ns (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	15V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
