B64290L0616X830

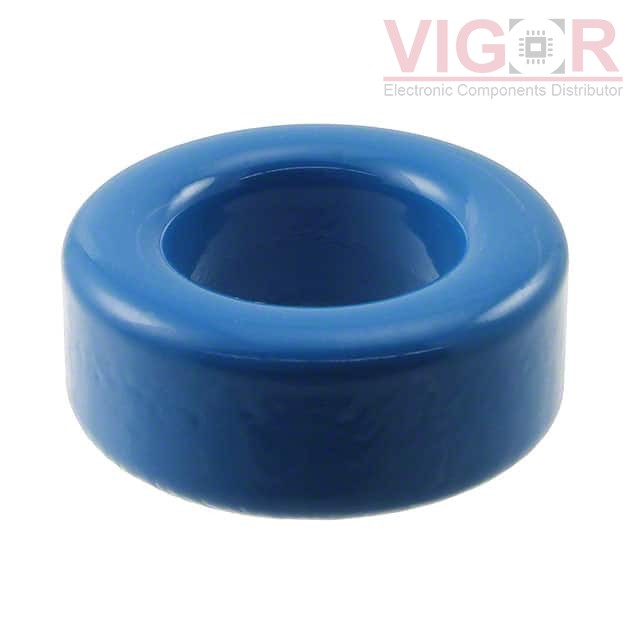

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0616X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 9.16UH N30

Catalog: Ferrite Cores

DataSheet: B64290L0616X830 PDF

Availability: 137 pieces

Unit Price: ~~$2.95000~~

Current price of B64290L0616X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290L0616X830 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	26.60mm
Inductance Factor (Al):	9.16 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.59
Effective Length (le) mm:	60.07
Effective Area (Ae) mm²:	102.5
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	6157
Finish:	Epoxy
Height:	21.30mm
Length:	-
Width:	-
