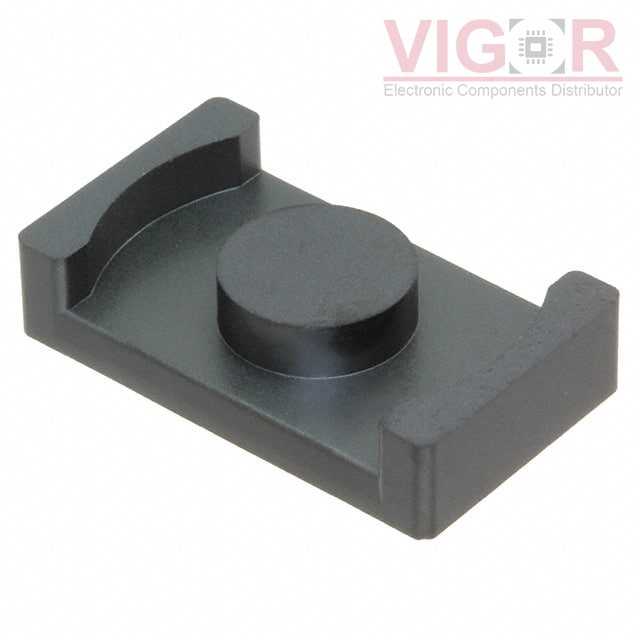

B66347G0000X197

Part No :: B66347G0000X197

Manufacturer: TDK EPCOS

VIGOR # :: 4178988

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66347G0000X197 PDF

Country of origin: -

Date code: -

B66347G0000X197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 42 x 22 x 15
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	0.58
Effective Length (le) mm:	99
Effective Area (Ae) mm²:	170
Minimum Core Cross Section (Amin) mm²:	170
Effective Magnetic Volume (Ve) mm³:	16800
Finish:	Uncoated
Height:	21.80mm
Length:	42.00mm
Width:	15.00mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 151

Shipped from

HK warehouse

Expected Shipping Date

Jan 27 - Jan 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.96~~	~~$2.96~~
10	~~$2.54~~	~~$25.37~~
25	~~$1.90~~	~~$47.57~~
50	~~$1.85~~	~~$92.49~~
100	~~$1.64~~	~~$163.84~~
250	~~$1.53~~	~~$383.16~~
500	~~$1.43~~	~~$713.48~~
1000	~~$1.32~~	~~$1 321.25~~

Current price of B66347G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
