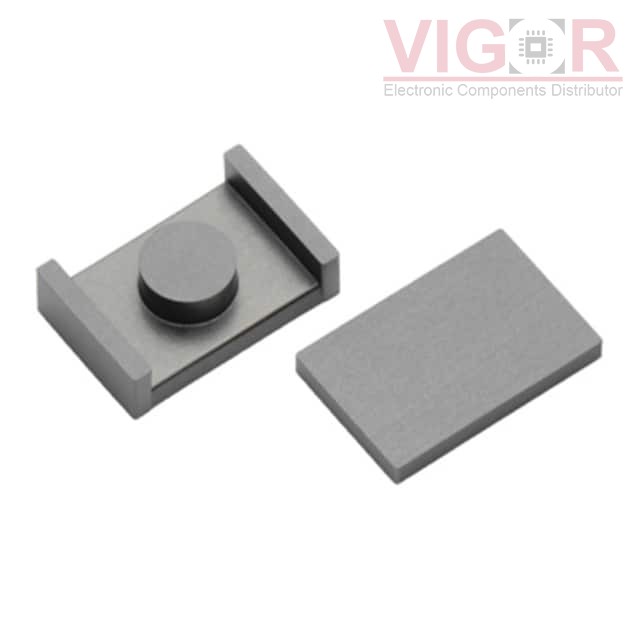

PC95EIR18/5/12-Z

Part No :: PC95EIR18/5/12-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE EIR 3.69UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95EIR18/5/12-Z PDF

Availability: 201 pieces

Current price of PC95EIR18/5/12-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95EIR18/5/12-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	HER, PLT
Supplier Device Package:	EI 18 x 5 x 12
Material:	PC95
Diameter:	-
Inductance Factor (Al):	3.69 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.6
Effective Length (le) mm:	32.8
Effective Area (Ae) mm²:	19.7
Minimum Core Cross Section (Amin) mm²:	28.3
Effective Magnetic Volume (Ve) mm³:	645
Finish:	Uncoated
Height:	5.00mm
Length:	18.15mm
Width:	12.00mm
