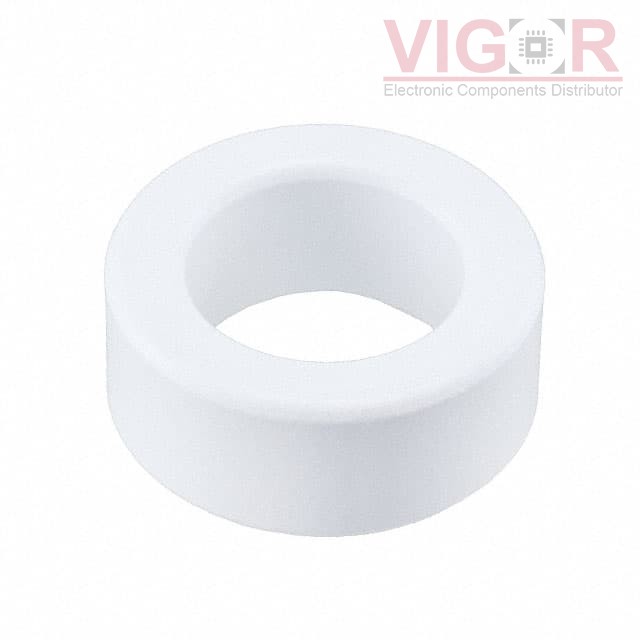

TX29/19/15-3E10-M

Part No :: TX29/19/15-3E10-M

Manufacturer: FERROXCUBE

Description: FERRITE CORES ROUND

Catalog: Ferrite Cores

DataSheet: TX29/19/15-3E10-M PDF

Availability: 71 pieces

Current price of TX29/19/15-3E10-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TX29/19/15-3E10-M Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	TX 29 x 19 x 15
Material:	-
Diameter:	29.95mm
Inductance Factor (Al):	-
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	10000
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.98
Effective Length (le) mm:	73.2
Effective Area (Ae) mm²:	73.9
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	5410
Finish:	Epoxy
Height:	16.05mm
Length:	-
Width:	-
