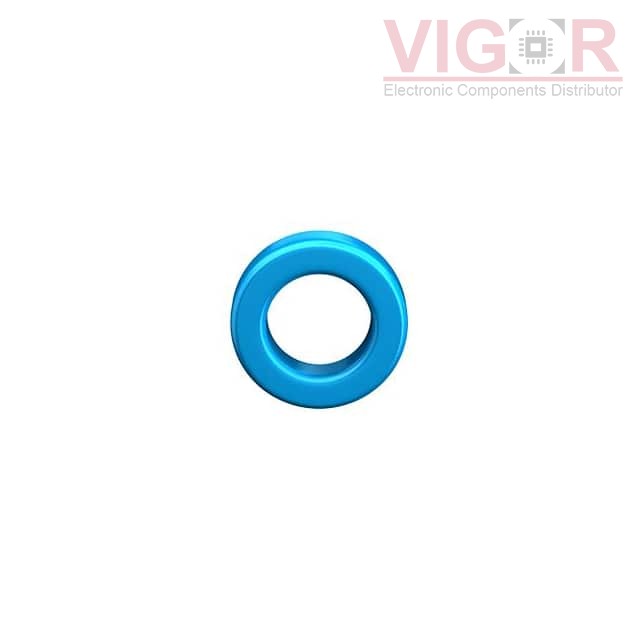

B64290L0022X065

Part No :: B64290L0022X065

Manufacturer: TDK EPCOS

VIGOR # :: 4179540

Description: FERRITE CORE TOROID 5.8UH T65

Catalog: Ferrite Cores

DataSheet: B64290L0022X065 PDF

Country of origin: -

Date code: -

B64290L0022X065 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	T65
Diameter:	43.60mm
Inductance Factor (Al):	5.8 µH
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	5000
Core Factor (ΣI/A) mm^-1:	1.08
Effective Length (le) mm:	103
Effective Area (Ae) mm²:	95.75
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	9862
Finish:	Epoxy
Height:	13.60mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 197

Shipped from

HK warehouse

Expected Shipping Date

Jan 23 - Jan 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.13~~	~~$4.13~~
10	~~$3.52~~	~~$35.17~~
25	~~$2.68~~	~~$66.89~~
50	~~$2.60~~	~~$129.97~~
100	~~$2.29~~	~~$229.34~~
250	~~$2.14~~	~~$535.14~~
500	~~$1.99~~	~~$993.82~~
1000	~~$1.91~~	~~$1 911.20~~

Current price of B64290L0022X065 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

B65981B0000R087

PQ50/40 N87 UNGAPPED

B66482G0000X608

ER23/5/13-PC200

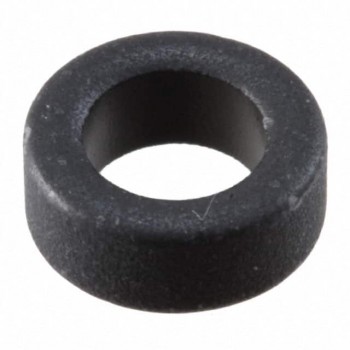

B64290P0687X830
