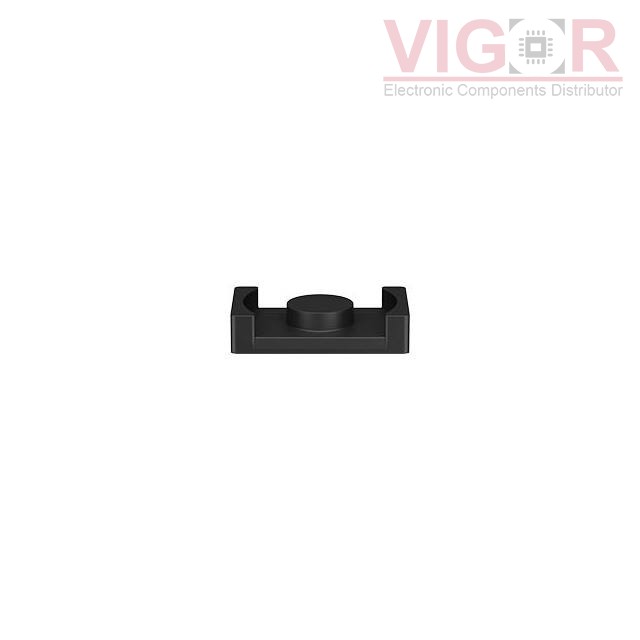

B66506K0000X197

Part No :: B66506K0000X197

Manufacturer: TDK EPCOS

Description: I30/2.7/20 N97 UNGAPPED

Catalog: Ferrite Cores

DataSheet: B66506K0000X197 PDF

Availability: 0 pieces

Current price of B66506K0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66506K0000X197 Specifications

Type	Description
Series:	B66506
Package:	Box
Part Status:	Active
Core Type:	I
Supplier Device Package:	I 30 x 2.7 x 20
Material:	N97
Diameter:	-
Inductance Factor (Al):	5.75 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	1330
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.29
Effective Length (le) mm:	31.5
Effective Area (Ae) mm²:	108
Minimum Core Cross Section (Amin) mm²:	95
Effective Magnetic Volume (Ve) mm³:	3400
Finish:	Uncoated
Height:	0.106" (2.70mm)
Length:	1.181" (30.00mm)
Width:	0.787" (20.00mm)
