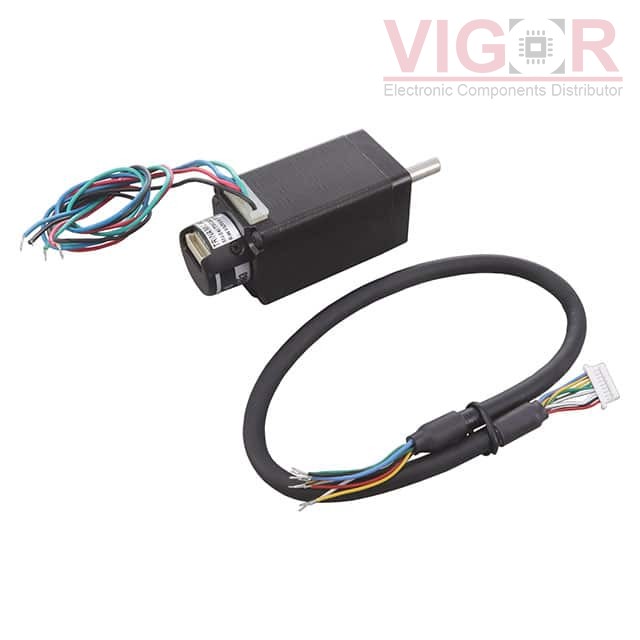

QSH2818-51-07-012-8192-AT

Part No :: QSH2818-51-07-012-8192-AT

Manufacturer: TRINAMIC Motion Control GmbH

VIGOR # :: 2680592

Description: STEP MOTOR HYBRID NEMA11 ENC 819

Catalog: Stepper Motors

DataSheet: QSH2818-51-07-012-8192-AT PDF

Country of origin: -

Date code: -

QSH2818-51-07-012-8192-AT Specifications

Type	Description
Series:	QMot QSH2818
Package:	Bulk
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	6.2VDC
Current Rating (Amps):	670 mA
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	17 / 120
Size / Dimension:	Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size:	11
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.787" (20.00mm)
Mounting Hole Spacing:	0.906" (23.00mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	9.2 Ohms
Features:	Flatted Shaft
