14PY-Z264U

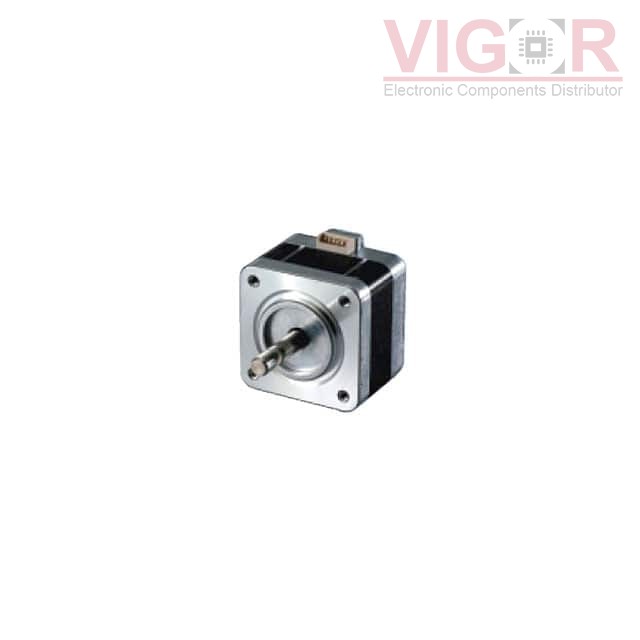

Product image
Product thumb
Part No :

14PY-Z264U

Manufacturer
NMB Technologies Corp.
VIGOR # :

2680594

Description
STEP MOTOR HYBRID UNIPOLAR 24V
Catalog
Stepper Motors
DataSheet
14PY-Z264U PDF
Country of origin
Confirming
Date code
TBC
ads
14PY-Z264U Specifications
Type Description
Series:14PY
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Unipolar
Voltage - Rated:24VDC
Current Rating (Amps):400 mA
Steps per Revolution:400
Step Angle:0.9°
Accuracy:-
Torque - Holding (oz-in / mNm):3.12 / 22
Size / Dimension:Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size:14
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:1.023" (26.00mm)
Termination Style:Connector
Operating Temperature:-
Coil Resistance:7 Ohms
Features:Round Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $39.2000 $39.20
10 $39.2000 $392.00

Current price of 14PY-Z264U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

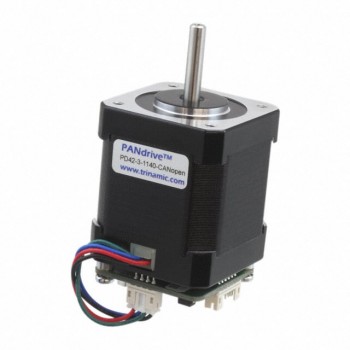

PD42-3-1140-CANOPEN

PD42-3-1140-CANOPEN

STEPPER MOTOR HYBRID BIPOLAR 24V

SS2501-8040P

SS2501-8040P

STEP, F2, SQ.50, 1.8, PANCAKE TY

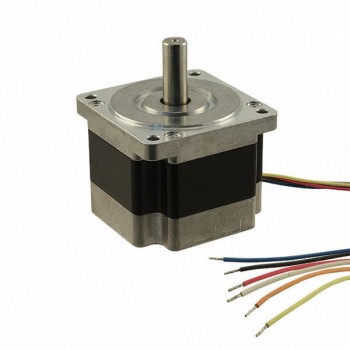

34KM-K206-99W
