LS L296-P2Q2-1-Z

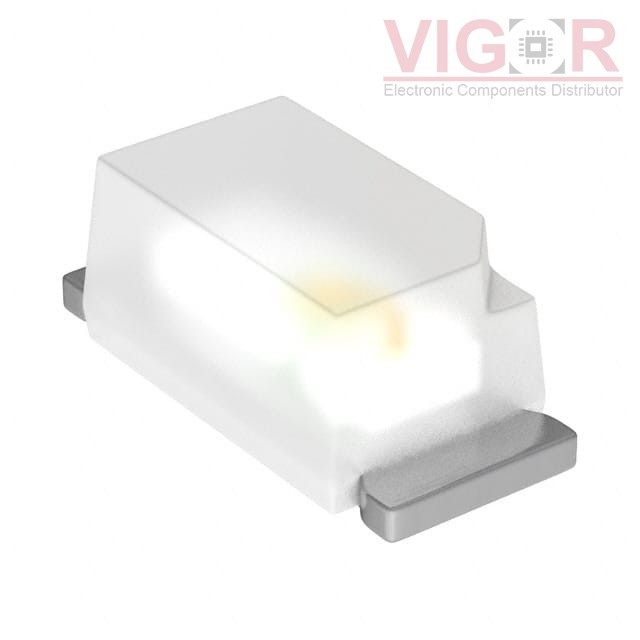

Image is for reference,
please contact us to get the real picture

Part No :: LS L296-P2Q2-1-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED RED DIFFUSED 0603 SMD

Catalog: LED Indication - Discrete

DataSheet: LS L296-P2Q2-1-Z PDF

Availability: 37815 pieces

Unit Price: ~~$0.44000~~

Current price of LS L296-P2Q2-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS L296-P2Q2-1-Z Specifications

Type	Description
Series:	SMARTLED® 0603
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	84mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.30mm x 0.80mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	160°
Mounting Type:	Surface Mount
Wavelength - Dominant:	630nm
Wavelength - Peak:	-
Features:	-
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	1.70mm L x 0.80mm W
Height (Max):	0.65mm
