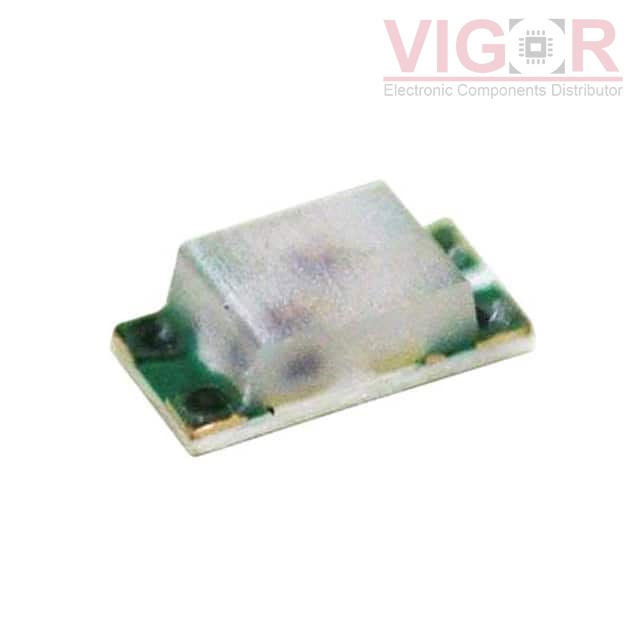

SML-D22MUWT86

Part No :: SML-D22MUWT86

Manufacturer: ROHM Semiconductor

VIGOR # :: 1673142

Description: LED RED/YELLOW-GREEN 1608 SMD

Catalog: LED Indication - Discrete

DataSheet: SML-D22MUWT86 PDF

Country of origin: -

Date code: -

SML-D22MUWT86 Specifications

Type	Description
Series:	SML-D22
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Yellow-Green
Configuration:	Independent
Lens Color:	White
Lens Transparency:	-
Millicandela Rating:	16mcd Red, 10mcd Yellow-Green
Lens Style:	Rectangle with Flat Top
Lens Size:	1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ):	1.9V Red, 2V Yellow-Green
Current - Test:	5mA Red, 5mA Yellow-Green
Viewing Angle:	-
Mounting Type:	Surface Mount
Wavelength - Dominant:	620nm Red, 570nm Yellow-Green
Wavelength - Peak:	-
Features:	-
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	1608 (0603)
Size / Dimension:	1.60mm L x 0.80mm W
Height (Max):	0.65mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 60643

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.60~~	~~$0.60~~
3000	~~$0.14~~	~~$432.63~~
6000	~~$0.13~~	~~$786.60~~
15000	~~$0.12~~	~~$1 835.40~~

Current price of SML-D22MUWT86 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
