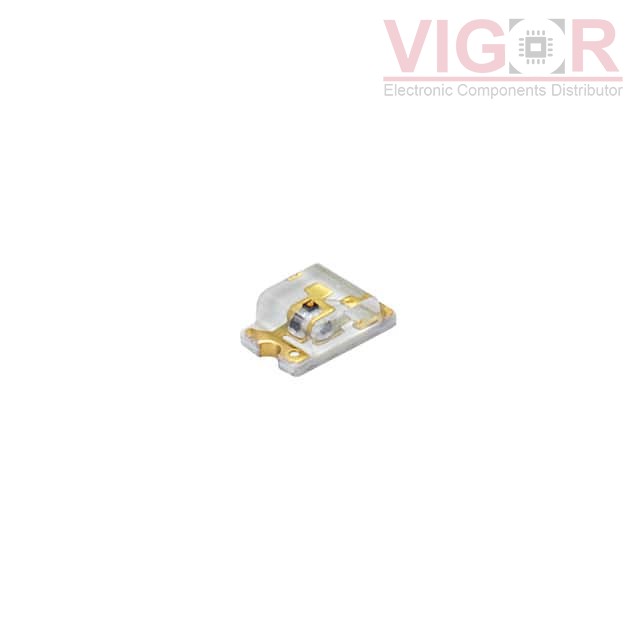

CSB85BY2G2C

Part No :: CSB85BY2G2C

Manufacturer: ChromeLED

VIGOR # :: 1675687

Description: LED YEL/GRN CLEAR 0805 SMD

Catalog: LED Indication - Discrete

DataSheet: CSB85BY2G2C PDF

Current price of CSB85BY2G2C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSB85BY2G2C Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Green, Yellow
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	35mcd Green, 140mcd Yellow
Lens Style:	Rectangle with Flat Top
Lens Size:	1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	570nm Green, 590nm Yellow
Wavelength - Peak:	572nm Green, 595nm Yellow
Features:	-
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	2.00mm L x 1.25mm W
Height (Max):	0.80mm

Please confirm the specifications of the products when ordering.
