LS L296-N2Q1-1-Z

LS L296-N2Q1-1-Z

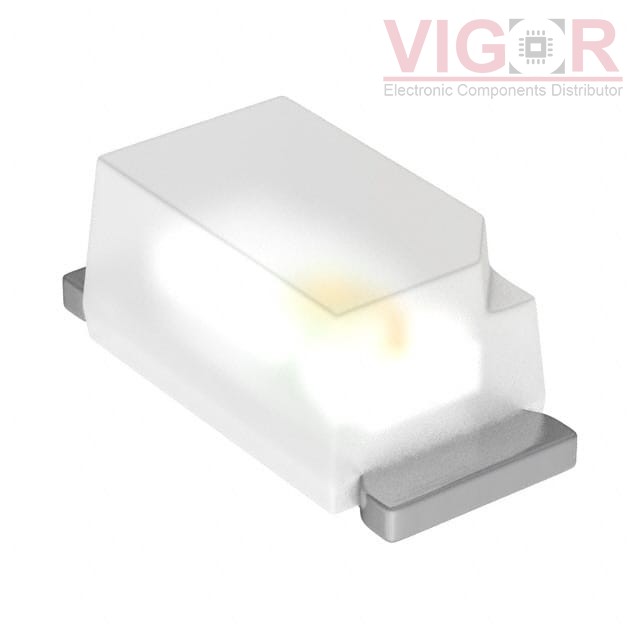

Image is for reference,
please contact us to get the real picture

Part No :

LS L296-N2Q1-1-Z

Manufacturer
OSRAM Opto Semiconductors, Inc.
Description
LED RED DIFFUSED 0603 SMD
Catalog
LED Indication - Discrete
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
LS L296-N2Q1-1-Z PDF
Availability
0 pieces
Unit Price
$0.08812

Current price of LS L296-N2Q1-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS L296-N2Q1-1-Z Specifications
Type Description
Series:SMARTLED® 0603
Package:Tape & Reel (TR)
Part Status:Active
Color:Red
Configuration:Standard
Lens Color:White
Lens Transparency:Diffused
Millicandela Rating:62.75mcd
Lens Style:Rectangle with Flat Top
Lens Size:1.30mm x 0.80mm
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Viewing Angle:160°
Mounting Type:Surface Mount
Wavelength - Dominant:630nm
Wavelength - Peak:-
Features:-
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:1.70mm L x 0.80mm W
Height (Max):0.65mm
