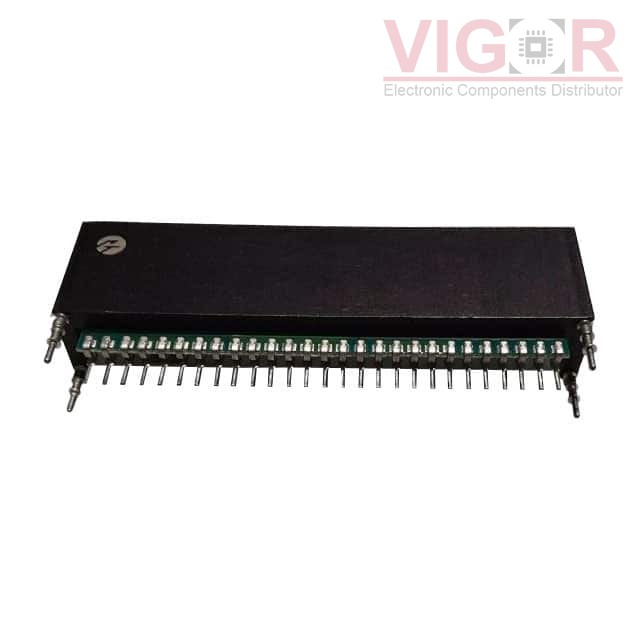

PT7705A

Part No :: PT7705A

Manufacturer: VIGOR

VIGOR # :: 4101666

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT7705A PDF

Country of origin: -

Date code: -

PT7705A Specifications

Type	Description
Series:	PT7705
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.3 ~ 3.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	18A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	0°C ~ 85°C
Efficiency:	89%
Mounting Type:	Through Hole, Horizontal
Package / Case:	27-SIP Module, Horizontal
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7715A Match 85%	VIGOR SWITCHING REGULATOR	PT7705A vs PT7715A
PT7711A Match 85%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT7705A vs PT7711A
PT7745A Match 85%	Texas Instruments DC DC CONVERTER 4.5-5.5V	PT7705A vs PT7745A
PT7749A Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7705A vs PT7749A
PT7707A Match 100%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7705A vs PT7707A
PT7709A Match 85%	Texas Instruments DC DC CONVERTER 1.3-3.5V	PT7705A vs PT7709A

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 81

Shipped from

HK warehouse

Expected Shipping Date

Sep 08 - Sep 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$45.0900~~	~~$45.09~~

Current price of PT7705A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
