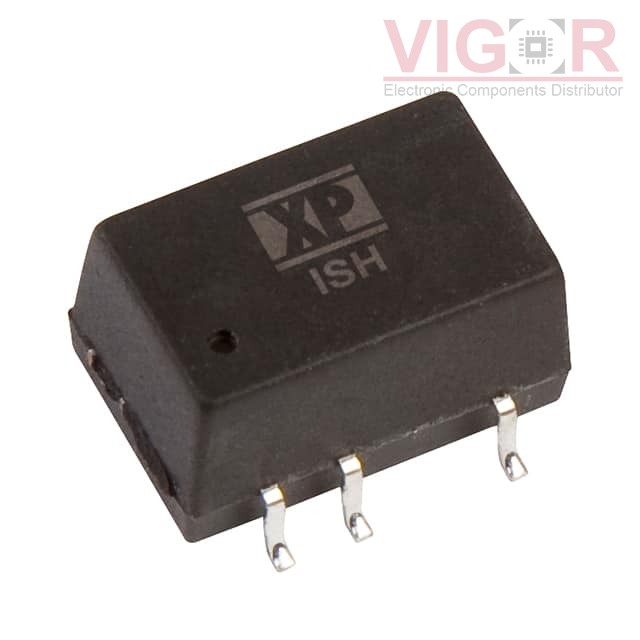

ISH0509A

Part No :: ISH0509A

Manufacturer: XP Power

VIGOR # :: 4105310

Description: DC DC CONVERTER 9V 2W

Catalog: DC DC Converters

DataSheet: ISH0509A PDF

Country of origin: -

Date code: -

ISH0509A Specifications

Type	Description
Series:	ISH (2W)
Package:	Tape & Reel (TR)Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	222mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	82%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.50" L x 0.44" W x 0.29" H (12.7mm x 11.2mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
ISH0509A-H Match 91%	XP Power DC DC CONVERTER 9V 2W	ISH0509A vs ISH0509A-H
PDS2-S5-S9-M-TR Match 100%	CUI Inc. DC DC CONVERTER 9V 2W	ISH0509A vs PDS2-S5-S9-M-TR
PDS2-S5-S12-M-TR Match 63%	CUI Inc. DC DC CONVERTER 12V 2W	ISH0509A vs PDS2-S5-S12-M-TR
ISH0512A Match 63%	XP Power DC DC CONVERTER 12V 2W	ISH0509A vs ISH0512A
PDS2-S5-S12-M Match 63%	CUI Inc. DC DC CONVERTER 12V 2W	ISH0509A vs PDS2-S5-S12-M
ISH0512A-H Match 54%	XP Power DC DC CONVERTER 12V 2W	ISH0509A vs ISH0512A-H

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 71

Shipped from

HK warehouse

Expected Shipping Date

Sep 09 - Sep 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.5000~~	~~$7.50~~
5	~~$7.2760~~	~~$36.38~~
10	~~$7.0500~~	~~$70.50~~
25	~~$6.7500~~	~~$168.75~~
100	~~$6.3000~~	~~$630.00~~

Current price of ISH0509A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
