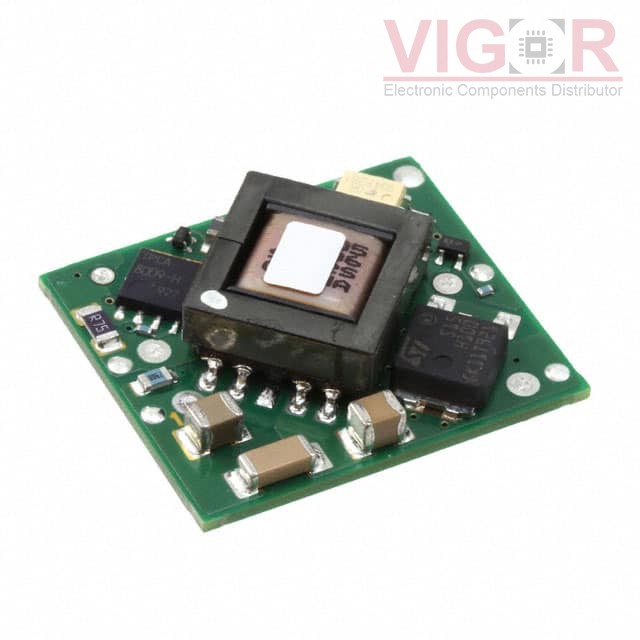

PTMA401120N1AZ

Image is for reference,
please contact us to get the real picture

Part No :: PTMA401120N1AZ

Manufacturer: VIGOR

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 04 - Oct 08 2025

DataSheet: PTMA401120N1AZ PDF

Availability: 513 pieces

Unit Price: ~~$18.41000~~

Current price of PTMA401120N1AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTMA401120N1AZ Specifications

Type	Description
Series:	PTMA40xx (10W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Surface Mount
Package / Case:	5-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
