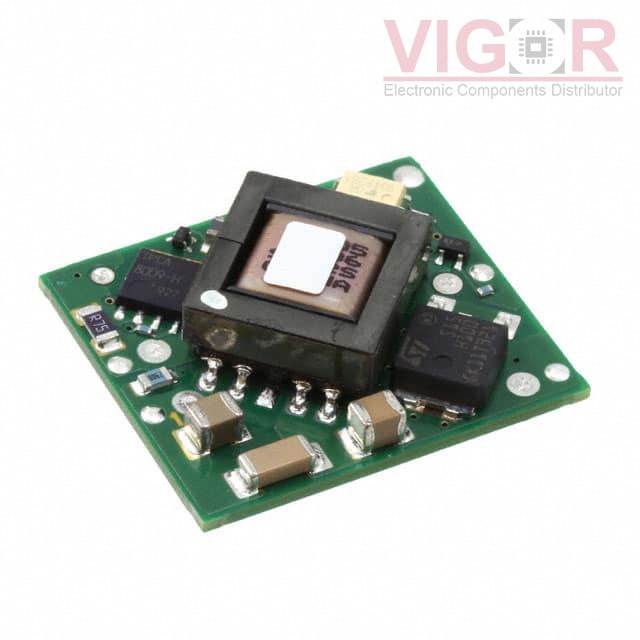

PTMA401120N1AZT

Part No :: PTMA401120N1AZT

Manufacturer: Texas Instruments

VIGOR # :: 5005624

Description: DC DC CONVERTER 12V 10W

Catalog: DC DC Converters

DataSheet: PTMA401120N1AZT PDF

Country of origin: -

Date code: -

PTMA401120N1AZT Specifications

Type	Description
Series:	PTMA40xx (10W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Surface Mount
Package / Case:	5-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTMA401120N1AZ Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTMA401120N1AZT vs PTMA401120N1AZ
PTMA401120A2AZ Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTMA401120N1AZT vs PTMA401120A2AZ
PTMA401120A2AS Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTMA401120N1AZT vs PTMA401120A2AS
PTMA401120A2AZT Match 100%	Texas Instruments DC DC CONVERTER 12V 10W	PTMA401120N1AZT vs PTMA401120A2AZT
PTMA401120P1AS Match 100%	Texas Instruments DC DC CONVERTER 12V 10W	PTMA401120N1AZT vs PTMA401120P1AS
PTMA401120N1AS Match 100%	Texas Instruments DC DC CONVERTER 12V 10W	PTMA401120N1AZT vs PTMA401120N1AS
