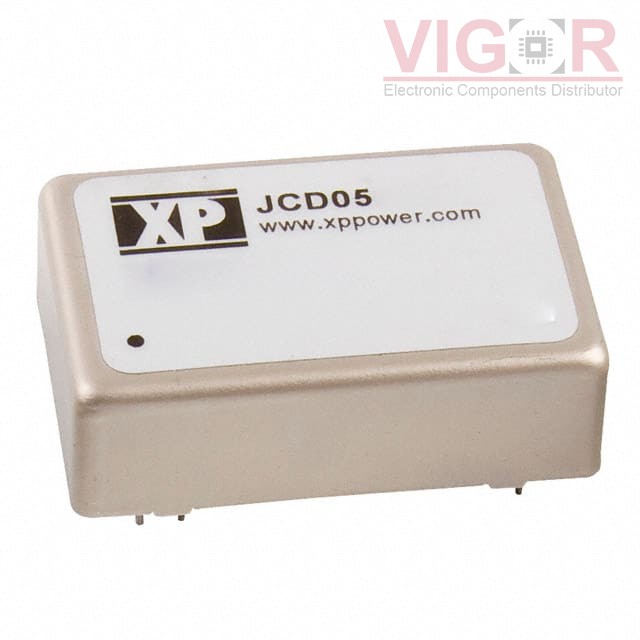

JCD0512D09

Part No :: JCD0512D09

Manufacturer: XP Power

VIGOR # :: 4116138

Description: DC DC CONVERTER +/-9V 5W

Catalog: DC DC Converters

DataSheet: JCD0512D09 PDF

Country of origin: -

Date code: -

JCD0512D09 Specifications

Type	Description
Series:	JCD (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	9V
Voltage - Output 2:	-9V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	278mA
Power (Watts):	5 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCD0512D12 Match 63%	XP Power DC DC CONVERTER +/-12V 5W	JCD0512D09 vs JCD0512D12
JTC0624D12 Match 64%	XP Power DC DC CONVERTER +/-12V 6W	JCD0512D09 vs JTC0624D12
JCD0612D09 Match 87%	XP Power DC DC CONVERTER +/-9V 6W	JCD0512D09 vs JCD0612D09
JCD0412D09 Match 83%	XP Power DC DC CONVERTER +/-9V 4W	JCD0512D09 vs JCD0412D09
JCD0612D12 Match 65%	XP Power DC DC CONVERTER +/-12V 6W	JCD0512D09 vs JCD0612D12

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 795

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$20.7500~~	~~$20.75~~
5	~~$20.1280~~	~~$100.64~~
10	~~$19.5050~~	~~$195.05~~
25	~~$18.6752~~	~~$466.88~~
100	~~$17.4300~~	~~$1 743.00~~

Current price of JCD0512D09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-JWY-EY-F3

DC DC CONVERTER 3.3V 33W

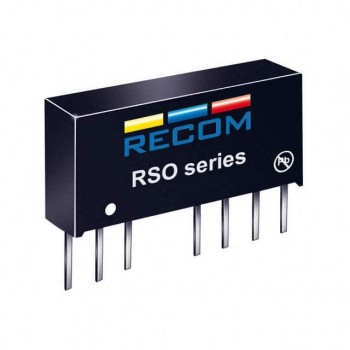

RSO-1215D
