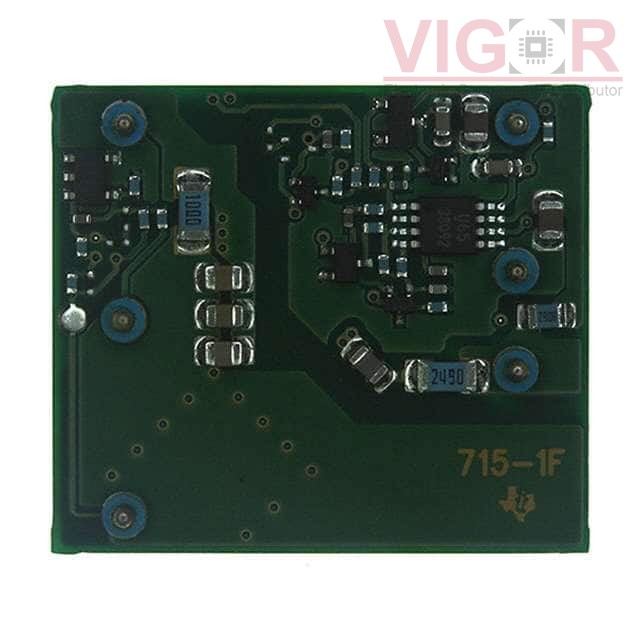

PTMA401120A3AZ

Part No :: PTMA401120A3AZ

Manufacturer: VIGOR

VIGOR # :: 4130572

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

DataSheet: PTMA401120A3AZ PDF

Country of origin: -

Date code: -

PTMA401120A3AZ Specifications

Type	Description
Series:	PTMA40xx (10W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SUS104812B Match 82%	Cosel DC DC CONVERTER 12V	PTMA401120A3AZ vs SUS104812B
SUS104812BP Match 80%	Cosel DC DC CONVERTER 12V 12W	PTMA401120A3AZ vs SUS104812BP
SUCS104812BP Match 80%	Cosel DC DC CONVERTER 12V 12W	PTMA401120A3AZ vs SUCS104812BP
PTMA401120P2AZ Match 100%	VIGOR DC-DC REGULATED POWER SUPPLY MOD	PTMA401120A3AZ vs PTMA401120P2AZ
EC2SB-48S12S Match 92%	Cincon DC DC CONVERTER 12V 10W	PTMA401120A3AZ vs EC2SB-48S12S
SUCS104812B Match 80%	Cosel DC DC CONVERTER 12V 12W	PTMA401120A3AZ vs SUCS104812B

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 60

Shipped from

HK warehouse

Expected Shipping Date

Sep 08 - Sep 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.0000~~	~~$14.00~~

Current price of PTMA401120A3AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
