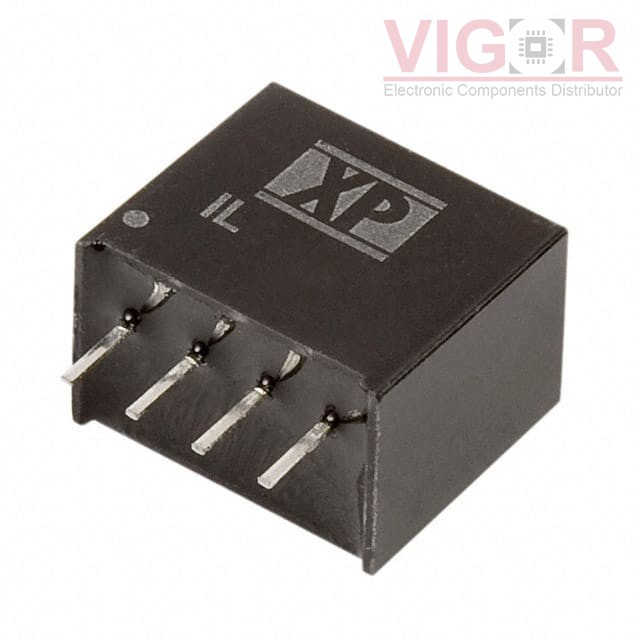

IL0503S

Part No :: IL0503S

Manufacturer: XP Power

VIGOR # :: 4131956

Description: DC DC CONVERTER 3.3V 2W

Catalog: DC DC Converters

DataSheet: IL0503S PDF

Country of origin: -

Date code: -

IL0503S Specifications

Type	Description
Series:	IL (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	2 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	71%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
2S4E_0505S1U Match 64%	TE Connectivity AMP Connectors DC-DC	IL0503S vs 2S4E_0505S1U
MGS1R5053R3 Match 93%	Cosel DC DC CONVERTER 3.3V	IL0503S vs MGS1R5053R3
NML0505SC Match 64%	Murata Power Solutions DC DC CONVERTER 5V 2W	IL0503S vs NML0505SC
AM2S-0503SH30Z Match 72%	DComponents DC DC CONVERTER 3.3V 1.3W	IL0503S vs AM2S-0503SH30Z
IL0505S Match 64%	XP Power DC DC CONVERTER 5V 2W	IL0503S vs IL0505S
2S4E_0503S1U Match 87%	TE Connectivity AMP Connectors DC-DC	IL0503S vs 2S4E_0503S1U

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 482

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.0000~~	~~$7.00~~
5	~~$6.7900~~	~~$33.95~~
10	~~$6.5800~~	~~$65.80~~
25	~~$6.3000~~	~~$157.50~~
100	~~$5.8800~~	~~$588.00~~

Current price of IL0503S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
