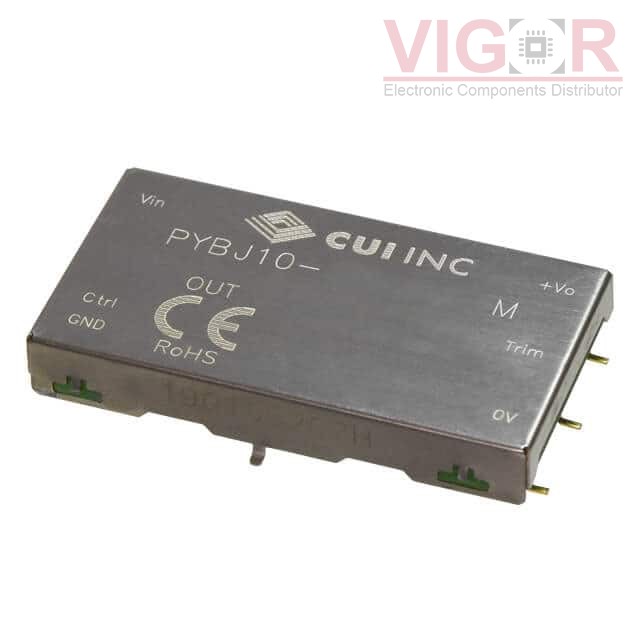

PYBJ10-Q24-S5-M

Part No :: PYBJ10-Q24-S5-M

Manufacturer: CUI Inc.

VIGOR # :: 4149432

Description: DC DC CONVERTER 5V 10W

Catalog: DC DC Converters

DataSheet: PYBJ10-Q24-S5-M PDF

Country of origin: -

Date code: -

PYBJ10-Q24-S5-M Specifications

Type	Description
Series:	PYBJ10 (10W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	84%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	1.59" L x 0.87" W x 0.28" H (40.2mm x 22.0mm x 7.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, IEC, UL
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
UEI15-050-Q12NM-C Match 65%	Murata Power Solutions DC DC CONVERTER 5V 15W	PYBJ10-Q24-S5-M vs UEI15-050-Q12NM-C
TON 15-2411WISM Match 65%	TRACO Power DC DC CONVERTER 5V 15W	PYBJ10-Q24-S5-M vs TON 15-2411WISM
PYBJ10-Q24-S5-OM Match 100%	CUI Inc. DC DC CONVERTER 5V 10W	PYBJ10-Q24-S5-M vs PYBJ10-Q24-S5-OM
UEI15-050-Q12PM-C Match 65%	Murata Power Solutions DC DC CONVERTER 5V 15W	PYBJ10-Q24-S5-M vs UEI15-050-Q12PM-C
PRD15-Q24-S5-N-M-TR Match 67%	CUI Inc. DC DC CONVERTER 5V 15W	PYBJ10-Q24-S5-M vs PRD15-Q24-S5-N-M-TR
PRD15-Q24-S5-P-M-TR Match 67%	CUI Inc. DC DC CONVERTER 5V 15W	PYBJ10-Q24-S5-M vs PRD15-Q24-S5-P-M-TR
