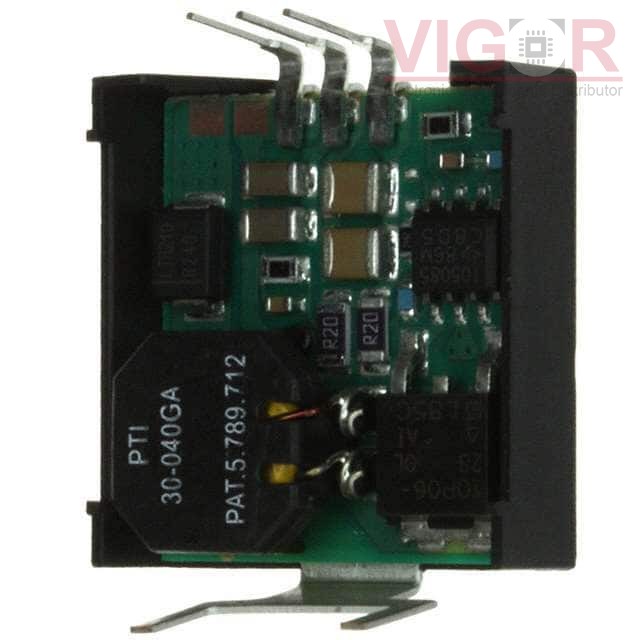

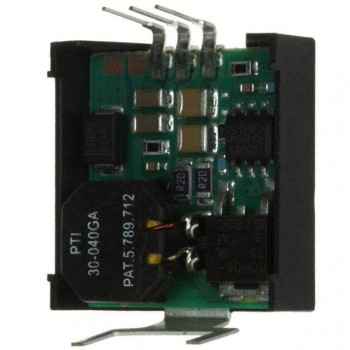

PT78NR206H

Part No :: PT78NR206H

Manufacturer: VIGOR

VIGOR # :: 4155363

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT78NR206H PDF

Country of origin: -

Date code: -

PT78NR206H Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.8A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	1.01" L x 0.93" W x 0.38" H (25.7mm x 23.6mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
78HT265HC Match 85%	VIGOR SWITCHING REGULATOR	PT78NR206H vs 78HT265HC
PT78NR252H Match 85%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78NR206H vs PT78NR252H
78ST205HC Match 85%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78NR206H vs 78ST205HC
78ST233HC Match 85%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78NR206H vs 78ST233HC
PT78HT205H Match 85%	Texas Instruments DC DC CONVERTER 5V	PT78NR206H vs PT78HT205H
PT78HT233H Match 85%	Texas Instruments DC DC CONVERTER 3.3V	PT78NR206H vs PT78HT233H

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 430

Shipped from

HK warehouse

Expected Shipping Date

Aug 11 - Aug 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.2200~~	~~$15.22~~

Current price of PT78NR206H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
