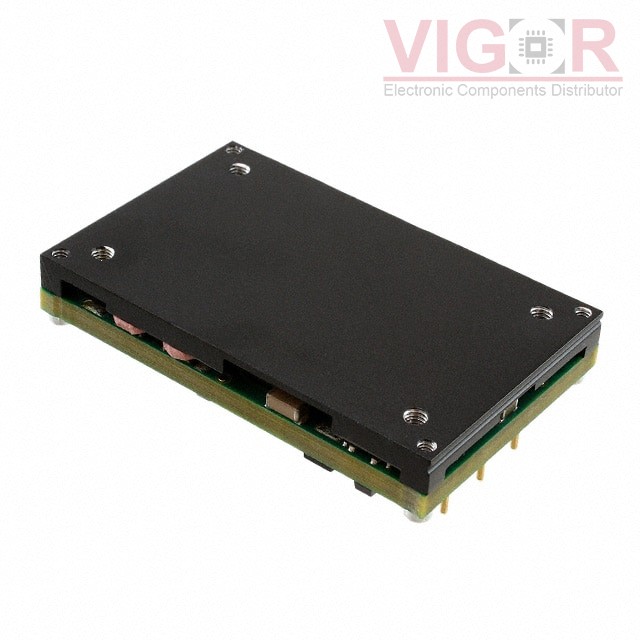

UWQ-12/20-T48PB-C

Part No :: UWQ-12/20-T48PB-C

Manufacturer: Murata Power Solutions

VIGOR # :: 4156348

Description: DC DC CONVERTER 12V 240W

Catalog: DC DC Converters

DataSheet: UWQ-12/20-T48PB-C PDF

Country of origin: -

Date code: -

UWQ-12/20-T48PB-C Specifications

Type	Description
Series:	UWQ
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	240 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 5 Leads, 1/4 Brick
Size / Dimension:	2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UWQ-12/20-T48NTB-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48NTB-C
UWQ-12/20-T48NBS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48NBS-C
UWQ-12/20-T48NB-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48NB-C
UWQ-12/20-T48NS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48NS-C
UWQ-12/20-T48PTB-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48PTB-C
UWQ-12/20-T48PBS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PB-C vs UWQ-12/20-T48PBS-C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 112

Shipped from

HK warehouse

Expected Shipping Date

Sep 05 - Sep 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$68.7500~~	~~$68.75~~
5	~~$68.2200~~	~~$341.10~~
10	~~$67.6900~~	~~$676.90~~
25	~~$66.7804~~	~~$1 669.51~~
50	~~$64.8802~~	~~$3 244.01~~
100	~~$61.7253~~	~~$6 172.53~~

Current price of UWQ-12/20-T48PB-C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
