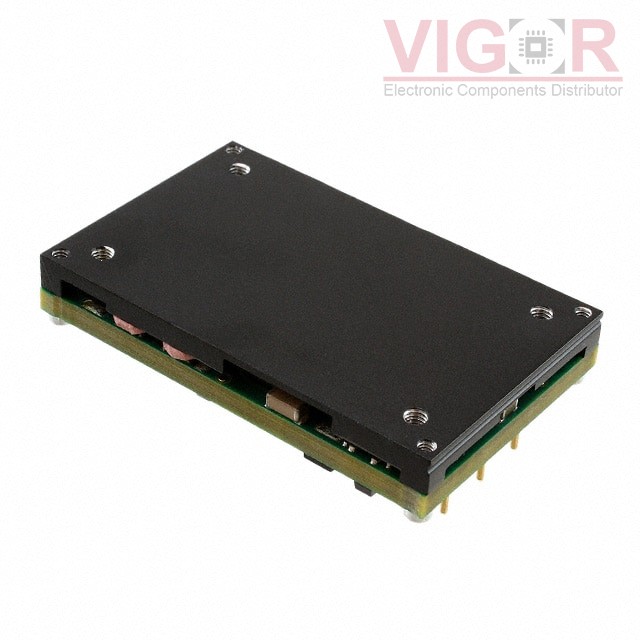

UWQ-12/20-T48PTB-C

Part No :: UWQ-12/20-T48PTB-C

Manufacturer: Murata Power Solutions

VIGOR # :: 4989302

Description: DC DC CONVERTER 12V 240W

Catalog: DC DC Converters

DataSheet: UWQ-12/20-T48PTB-C PDF

Country of origin: Confirming

Date code: TBC

UWQ-12/20-T48PTB-C Specifications

Type	Description
Series:	UWQ
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	240 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 5 Leads, 1/4 Brick
Size / Dimension:	2.30" L x 1.45" W x 0.48" H (58.4mm x 36.8mm x 12.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UWQ-12/20-T48NB-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48NB-C
UWQ-12/20-T48PB-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48PB-C
UWQ-12/20-T48NS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48NS-C
UWQ-12/20-T48PBS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48PBS-C
UWQ-12/20-T48PS-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48PS-C
UWQ-12/20-T48P-C Match 100%	Murata Power Solutions DC DC CONVERTER 12V 240W	UWQ-12/20-T48PTB-C vs UWQ-12/20-T48P-C
