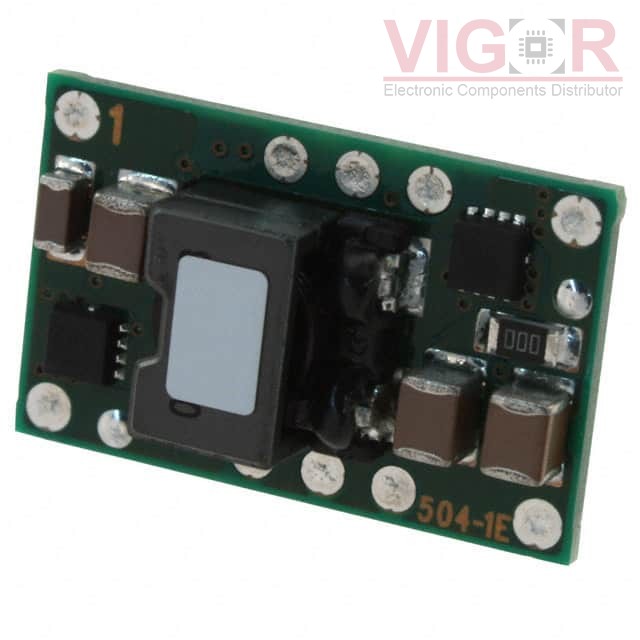

PTH12060LAZT

Part No :: PTH12060LAZT

Manufacturer: VIGOR

VIGOR # :: 4161789

Description: PTH12060L 0.8 TO 1.8V 10-A, 12-V

Catalog: DC DC Converters

DataSheet: PTH12060LAZT PDF

Country of origin: -

Date code: -

PTH12060LAZT Specifications

Type	Description
Series:	PTH12060 (55W)
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	55 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12060LAZ Match 100%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.8-1.8V 55W	PTH12060LAZT vs PTH12060LAZ
BR204 Match 100%	Sanken Electric Co., Ltd. DC DC CONVERTER 1.6-5.5V 55W	PTH12060LAZT vs BR204
PTH12060WAS Match 100%	VIGOR 1.2 TO 5.5 V 10-A, 12-V INPUT NO	PTH12060LAZT vs PTH12060WAS
PTH12060WAZT Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 10A	PTH12060LAZT vs PTH12060WAZT
PTH12060LAST Match 100%	VIGOR PTH12060L 0.8 TO 1.8V 10-A, 12-V	PTH12060LAZT vs PTH12060LAST
PTH12060YAST Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH12060LAZT vs PTH12060YAST

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1575

Shipped from

HK warehouse

Expected Shipping Date

Oct 31 - Nov 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$16.4300~~	~~$16.43~~
250	~~$13.8355~~	~~$3 458.87~~

Current price of PTH12060LAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
